Product Details:
|
| Condition: | New | Automatic Grade: | Automatic |
|---|---|---|---|
| Color & Page: | Multicolor | Usage: | Fabric Printing |
| Resolution: | 360-1440dpi | Max Print With: | 3.2m |
| Highlight: | sublimation printing machine,digital textile printing equipment,cmyk printing machine |
||

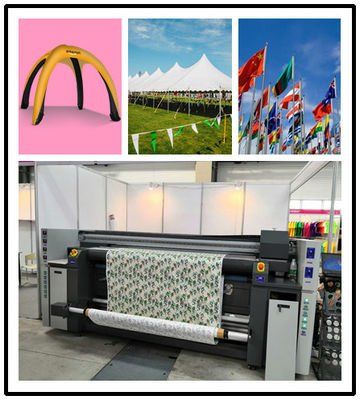

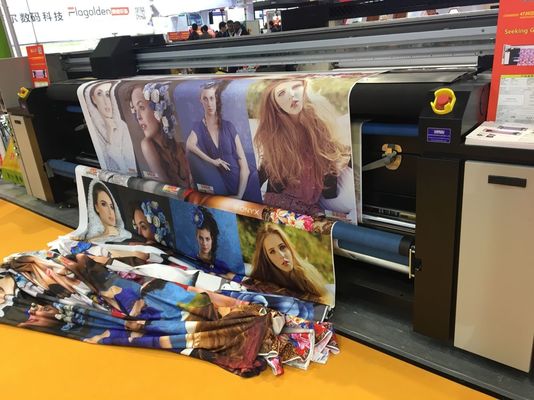

Product name: Textile digital printing machine / Sublimation Printing Machine
Product features:
1. Far Infrared Blackbody Tube Radiation Electro thermal Heating, our tuble can work at least 10000 hours.
2. Our machine have excellent heat insulation, can save more power for you.
3. Easy to load the media in and out oven during your machine working
4. Black tuble have more thermal efficiency
5. Intelligent PID Temperature Control
6. Feeding and Taking up are synchronous
7. Taking up can choose roll to roll .
8. Quick Tail Gas Treatment
9. Convenient to Maintain
10. Easy to Set up and Operate
11. Easy to open the caver to clean inside of oven
12. Easy to change the active carbon from the filter
Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
Specification:
| Product parameter | |
| Product name | Digital Textile Printing Machine |
| Model | CSR3200 |
| Include | One printer ,one sublimation heater and one filter fan |
| Ink model | Sublimation ink /Pigment ink |
| Available color | Dual CMYK |
| Print head | Piezo technology,2 Epson DX5 print head |
| Max material width | 3300mm |
| Max printing width | 3200mm |
| Print head high control | 1.5mm/1.6mm(adjustable) |
| Media type | Polyester,Cotton,Silk an Linen |
| Ink feeding system | 4 color mode:400cc cartriage*2color 800cc/color |
| Roll outer diameter | 3 inch |
| Max weight for roll material | 100kg |
| Head cleaning | Automatic/Manual |
| RAM | 128M |
| Printer power | AC380V(Adaptive) 50/60Hz±1Hz |
| Heater power consuption | 3500KW |
| Printer power consuption | 7.5KW |
| Weight | 890KG |
| Operation environment | 20-23oC Humidity:40-60% (non-condensing) |
Machine printing resolution and speed:
| Resolution | Speed |
| 360*1800dpi(3 pass) | 65 m2/h |
| 720*1200dpi(4 pass) | 45 m2/h |
| 720*1800dpi(6 pass) | 35 m2/h |
Filter Specification:
| Power | 550w |
| Package size | 60*55*108CM(0.382CBM) |
| Net Weight | 64kg |
| Gross Weight | 80kg |
| Working Voltage | 220-240V 50HZ |
| Input Air Temperature | ﹥200℃ |
| Out Air Temperature | ﹤25℃ |
What Service Can We Supply:
1.One year warranty, life-long after-sales service.
2.Instant online support service.
3.One to one professional technical free training. We can send engineers to install the machine overseas.
4.For printer ink, more order,more cheaper price !
5.Welcome to visit our Company and Factory at any time.
