Product Details:
|
| Product Name: | Direct Fabric Printing Machine | Application: | Indoor And Outdoor |
|---|---|---|---|
| Color Mode: | Dual CMYK | Print Head Type: | Epson 4720*3pcs |
| Rip Software: | Onyx | Compatible OS: | Win XP & Win 7 |
| Automatic Grade: | Automatic | Printing Media: | Coated Polyster Fabric,Cotton And Silk Fabric |
| Ink: | Sublimation And Pigment Ink | ||
| Highlight: | sublimation printing machine,digital textile printing equipment,cmyk printing machine |
||

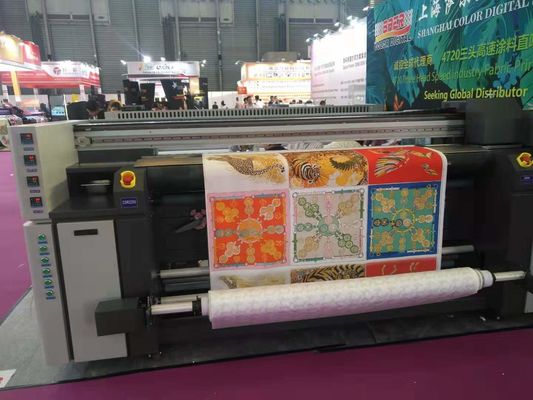

Digital Sublimation Textile Printing Machine for cloth ,cap,curtain and flag
Specifications:
|
Model |
CSR3200 |
|
Print head |
Piezo technology,Epson 4720 printer head*3 |
|
Ink |
Sublimation Ink /Pigment ink |
|
Color Mode |
Dual CMYK |
|
Nozzles |
(180 nozzles*8 lines)*3 head |
|
Print Head Height |
1.5mm/6mm(adjustable) |
|
Ink Supply Mode |
Continuous Ink Supply |
|
Max Material Width |
3300mm |
|
Max Printing Width |
3200mm |
|
Printing Media |
Coated polyster fabric |
|
Roll Owter Diameter |
3 Inch |
|
Max Weight For Roll Material |
100KG |
|
Interface |
USB 2.0 |
|
RAM |
128M |
|
Printer Power |
380V |
|
Power |
Direct Dye Sublimation Heater 3500W Printer 1000W |
|
Environment |
temperature 25-35 degree |
|
Weight |
1000KG |
Printing Resolution And Speed:
Resolution(DPI) Speed
360*1800dpi(3 pass) 65m²/h
720*1200dpi(4 pass) 45m²/h
720*1800dpi(6 pass) 35m²/h
Description:
1．Three Epson 4720 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2． Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3．X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10. Low cost and no need any transfer paper.
Applications:
Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show and so on.
Printing Samples:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
