Product Details:
|
| Voltage: | 380V | Application: | Indoor & Outdoor |
|---|---|---|---|
| Max Resolution: | 1800 DPI | Color Mode: | Dual CMYK |
| Gross Power: | 5.5KW | Product Name: | Direct Fabric Printing Machine |
| Print Head Type: | Two Epson DX5 Print Head | Plate Type: | Roll To Roll Printing Machine |
| Rip Software: | Maintop 5.3 Rip Software Or Neostampa 8 Optional | Compatible OS: | Win XP & Win 7 |
| Highlight: | sublimation printing machine,digital textile printing equipment,cmyk printing machine |
||

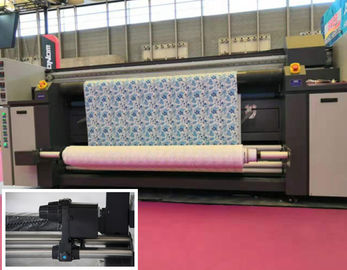

Tablecloth Making Sublimation Printing Machine / Cmyk Printing Machine
Specifications:
|
Model |
CSR3200 |
|
Print head |
Piezo technology,Epson DX5 print head*2 |
|
Ink |
Sublimation Ink, Pigment Ink |
|
Color Mode |
Dual CMYK |
|
Nozzles |
(180 nozzles*8 lines)*2 head |
|
Print Head Height |
1.5mm/6mm(adjustable) |
|
Ink Supply Mode |
Continuous Ink Supply |
|
Max Material Width |
3300mm |
|
Max Printing Width |
3200mm |
|
Printing Media |
Coated polyster fabric |
|
Roll Owter Diameter |
3 Inch |
|
Max Weight For Roll Material |
100KG |
|
Interface |
USB3.0 |
|
RAM |
128M |
|
Printer Power |
380V |
|
Power |
Direct Dye Sublimation Heater 3500W Printer 2000W |
|
Environment |
temperature 20-32 degree |
|
Weight |
1120KG |
Printing Resolution And Speed:
Resolution(DPI) Speed
360*1800dpi(3 pass) 65m²/h
720*1200dpi(4 pass) 45m²/h
720*1800dpi(6 pass) 35m²/h
Description:
1. Double Epson DX5 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10.Low cost and no need any transfer paper.
Applications:
Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show and so on.
Printing Samples:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
