High Resolution Digital Textile Printing Machine Sublimation Printing Machine With Epson Head

Certification
China Shanghai Color Digital Supplier Co., Ltd. certification
China Shanghai Color Digital Supplier Co., Ltd. certification
Customer Reviews
Only I feel I am not only a customer for your company, we are good friends.we try to solve problems like a family .

—— Zekai Altay----Turkey

Two years passed since bought the printer,seldom has problem,satisfied with the quality.

—— William Piero----United States

I have been using product from SAER we are very happy & satisfied with your products & services.

—— Mr Niraj----Kenya

I'm Online Chat Now

High Resolution Digital Textile Printing Machine Sublimation Printing Machine With Epson Head

High Resolution Digital Textile Printing Machine Sublimation Printing Machine With Epson Head
High Resolution Digital Textile Printing Machine Sublimation Printing Machine With Epson Head High Resolution Digital Textile Printing Machine Sublimation Printing Machine With Epson Head High Resolution Digital Textile Printing Machine Sublimation Printing Machine With Epson Head

Large Image :  High Resolution Digital Textile Printing Machine Sublimation Printing Machine With Epson Head

Product Details:
Place of Origin: Shanghai of China(Mainland)
Brand Name: SAER
Certification: CE Certification
Model Number: CSR 3200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Non fumigation wooden package(Package size 4460*1160*1730mm)
Delivery Time: 10 working days after get your payment
Payment Terms: T/T, Western Union
Supply Ability: 100 Sets / Month

High Resolution Digital Textile Printing Machine Sublimation Printing Machine With Epson Head

Description
Product Name: Direct Textile Printing Service Application: Indoor Decoration & Outdoor Advertisement
Resolution: 360 To 1080 DPI Color Mode: Dual CMYK
Sublimation Heater Power: 380V,50/60HZ Gross Power: 15.5KW
Print Head Type: Epson 4720 Print Head *3 Rip Software: Maintop 5.3 Rip Software Or Onyx Optional
Compatible OS: Win XP & Win 7 Printing Width: 3200mm(126 Inch)
Working Type: Connect Computer Ink Supply Mode: 4 Color Mode:400cc Cartridge*2/color 800cc/color
Printer Power: AC220-240V(Adaptive).50/60Hz±1Hz
Highlight:

sublimation printing machine

,

digital textile printing equipment

,

cmyk printing machine

Epson Head High Resolution Digital Sublimation Textile Printing Machine

Include:

CSR 3200F Digital Sublimation Textile Printing Machine,combined with 3.2m all-in-one printer and filter fan,sublimation printing type,printed material can use indoor and outdoor,can stand sunshine and no fade

Usage:

Serve solutions for small production,sample making ,designer ideas and training areas .
Printing and Heating together

Specifications:

1. Low cost
2. High productivity
3. Dye Sublimation system
4. Directly print on textile material
5. Good after sales service

Technical Detais


Product Name Sublimation Textile Printer
Model    CSR3200F
Combine With   All-in-one Printer and one Filter Fan
Print head Piezo technology,Epson 4720 printheads *3
Ink Sublimation ink,Reactive ink,Pigment ink
Media Type   Polyester,Cotton,Linen,Silk,Wool etc
Color mode Dual CMYK
Nozzles (180nozzles*8lines)*4 heads
Print head higher Adjustable
Ink supply mode 4color mode:400cc cartridge*2/color 800cc/color
Max meterials width 3300mm
Max printing width 3200mm
Roll owter diameter 3 Inch
Max weight for roll materials 100kg
Head Cleaning   Automatic/Manual
Interface USB 2.0/HIUSB
RAM 128M
Printer Power   AC220-240V(Adaptive).50/60Hz±1Hz
Sublimation heater power AC380V.50/60Hz
Printer Power consumtion  500W
Heater Power consumtion 15.5kw
Environment Temperature:20-32℃
Humidity:40-60℃(Non-condensing)
Weight 2200kg
Rip Software   Maintop 5.3 Rip Software Or Onyx Optional
Compatible OS   Win XP & Win 7


,




Printing Resolution And Speed:


Resolution speed
720 x 360dpi (2pass) 40m²/h
360 x 1080dpi(3pass) 32m²/h
720 x 720dpi(4pass) 22m²/h
720 x 1080dpi(6pass) 18 m²/h
720 x 1440dpi(8pass) 12 m²/h


Advantages:
 Print and Heat together,can be finished by a device directly, eliminating the need for printed material or the installation do extra work

Printed fabric can wash and no fade.

  • Directly print on polyster,Cotton fabric,no need any transfer paper.
  • The printed fabic after sublimation heater process can directly make banner flag etc,no fade.
  • The machine has an easy learing curre,you will be able to use iy perfectly within 3 days.


Available Ink and Material:

a. Sublimation Ink:
mainly used in polyester fabric.
b. Reactive Ink:
For cotton,linen and silk etc.
c. Pigment Ink:
For all kinds of textile fabrics.
Description:

1. Double Epson DX7 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10.Low cost and no need any transfer paper.

Applications:
Textile,flag,poster,banner, tablecloth,wall pictures,interior decoration, indoor and outdoor printing etc.

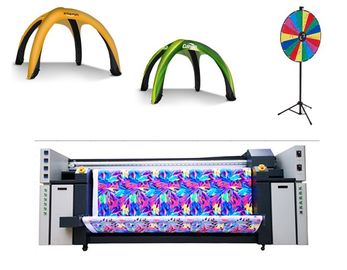

High Resolution Digital Textile Printing Machine Sublimation Printing Machine With Epson Head 0
After Sales Service:

1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier

Printer Detail Pictures:

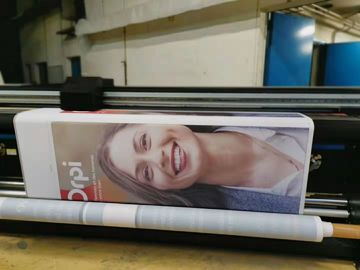

High Resolution Digital Textile Printing Machine Sublimation Printing Machine With Epson Head 1
