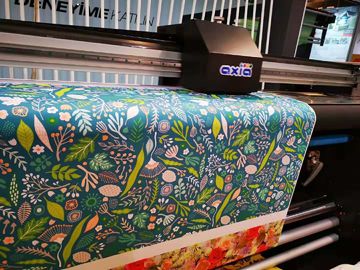

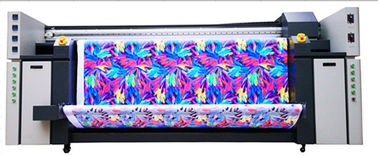

2.2m Large Format Size Fabric Plotter / Textile Fabric Cloth Printing Machine

2.2m Large Format Size Fabric Plotter / Textile Fabric Cloth Printing Machine
2.2m Large Format Size Fabric Plotter / Textile Fabric Cloth Printing Machine 2.2m Large Format Size Fabric Plotter / Textile Fabric Cloth Printing Machine

Large Image :  2.2m Large Format Size Fabric Plotter / Textile Fabric Cloth Printing Machine

Product Details:
Place of Origin: Shanghai, China
Brand Name: SAER
Certification: CE Certification
Model Number: CSR2200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 10 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets per month

2.2m Large Format Size Fabric Plotter / Textile Fabric Cloth Printing Machine

Description
Warranty: 1 Year Ink Type: Pigment Ink , Sublimation Ink
Software: Onyx Heater Power: 3.5kw
Automatic Grade: Automatic Type: Digital Printer
Highlight:

mimaki digital printing machine

,

digital fabric printer

,

continuous inkjet printer

Product name: 2.2m large farmat size fabric plotter / Textile Fabric Cloth Printing Machine





Our Support:



(1) 12-month warranty

(2) Free techinical traning

(3) On-site service

(4) Sample free

(5) Lifetime maintenace









Description:



1.3 pieces Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.

2. Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit

3.X axis and Y axis are using AC servo motors.

4.Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.

5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

6. The unique print platform design to make the cloth always smooth in the process of printing.

7. Unique filtering lampblack system, make the picture very clean.

8. Taking up and feeding roller are inflatable roller.

9. Taking up and feeding fabric are smoothly







Specifications:



Product Parameter
Model type CSR2200
Print head 3 pieces Epson 4720
Ink Sublimation ink, pigment ink
Number of nozzles (400 nozzles*8lines)*3head
Color Dual CMYK
Print head high 1.5mm/6mm (adjustable)
Ink supply mode Continuous ink supply
Max materials width 2200mm
Max printing width 2000mm
Roll outer diameter 3 inch
Maximum weight for roll material 100kg
Interface USB3.0
RAM 128M
Printer Power AC100-120V/AC220-240V(adjustive) 50/60HZ
Power Heater 3.5kw
Printer 100w
Temperature 30-32℃
Humidity 40-60%(Non-condensing)









Machine working Speed:





Printing resolution and speed



Resolution(dpi) speed
360*1800dpi(3 pass) 65m2/h

720*1220dpi(4 pass) 45m2/h

720*1800dpi(6 pass) 35m2/h







Below are our services terms:





1. Every printer will come with English user manual. The user manual guide well how to install the machine, and how to maintain machine in very details.

2. Our engineer full of experience, and they are English speaking, not need to worry about the communication, you can talk with engineer directly, solve your problem high efficiency.

3. You are always welcome to trip to China, welcome to feel us, if you visit china, our company very please to offer a free training of printers.

4. We also can send our engineer come to serve, customers need to pay engineer’s tickets, foods, hotel, and printer install or repair charges.







Applications:



Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

Outside: Advertising materials to make flag, banner, act fast show and so on.
