Product Details:
|
| Product Name: | Digital Fabric Printing Machine | Application: | Indoor & Outdoor Advertising Field |
|---|---|---|---|
| Color & Page: | Multicolor | Color Mode: | Dual CMYK |
| Voltage: | 380V | Print Head: | Epson 4720 |
| Rip Software: | Maintop 5.3 Rip Software Or Neostampa 8 Optional | Compatible OS: | Windows XP & Windows 7 |
| Include: | One 3.2m All-in-one Printing System And One Filter | Ink: | Sublimation,Reactive,Pigment Ink |
| Material: | Polyster,Cotton,Silk And Wool Fabric | Gross Power: | 6500W |
| Highlight: | cloth printing machine,large format printing machine |
||

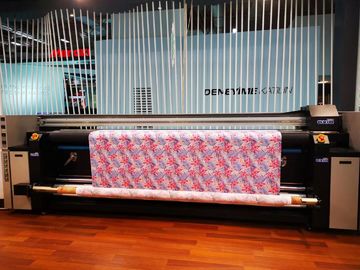

Digital Directly Sublimation Flag Printing Machine For Home Curtain Making
Specifications
|
Model |
CSR3200 |
|
Print head |
Piezo technology, Epson 4720 print head |
|
Ink |
Sublimation Ink,Reactive ink and Pigment Ink |
|
Color Mode |
Dual CMYK |
|
Nozzles |
(180 nozzles*8 lines)*2 heads |
|
Print Head Height |
1.5mm/6mm(adjustable) |
|
Ink Supply Mode |
Continuous Ink Supply |
|
Max Material Width |
3300mm |
|
Max Printing Width |
3200mm |
|
Roll Owter Diameter |
3 Inch |
|
Max Weight For Roll Material |
100KG |
|
Interface |
USB3.0 |
|
RAM |
128M |
|
Printer Power |
380V |
|
Power |
Direct Dye Sublimation Heater 3500W Printer 2000W |
|
Environment |
temperature 20-32 degree |
|
Weight |
1120KG |
Features:
Printer:
1. Three Epson 4720 print head, with fast print speed, long lifespan, high precision.
2. Printing groove designed specially for fabric printing to collect waste ink and keep fabric clean.
3. HIWIN mute guide rail,Germany IGUS silent drag chain,make the printing environment more quieter.
4. Refillable ink cartridge reduces production cost.
Heater:
1. Ceramic heating tube: Heating fast and well distributed
2.Feeding and taking up inflatable roller.
3. Front and back stainless steel oscillating axles make the fabric feeding smoothly without drape.
4. Intelligent Temperature control system. (0°C----300°C adjustable)
5. Discharge slot design helps to keep the heating tube clean and easy to wipe off the oil and dust.
Filter:
1. Exhaust pipes fully discharge the smoke from the tube.
2. Carbon can be inputted easily, it makes the environment odorless and smokeless.
3. Discharge slot is easily to clean.
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag,roll up banner, act fast show and so on.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manual, and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
