Product Details:
|
| Plate Type: | Roll To Roll | Condition: | New |
|---|---|---|---|
| Type: | Digital Printer | Usage: | Fabric Printing |
| Max Printing Width: | 3.2m | Color Model: | Dual CMYK |
| Material: | Any Kinds Of Fabric And Textile | ||
| Highlight: | large format printers,fabric printer machine,large format plotter |
||

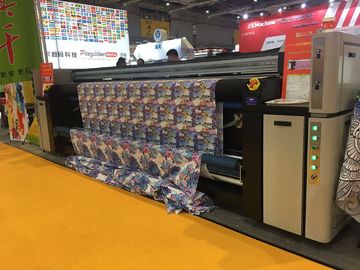

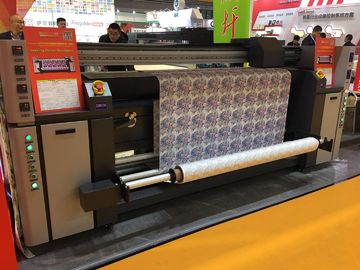

Product name: Custom feather flags printing machine / Sublimation Printing Machine for fabric
Product features:
1. Far Infrared Blackbody Tube Radiation Electro thermal Heating, our tuble can work at least 10000 hours.
2. Our machine have excellent heat insulation, can save more power for you.
3. Easy to load the media in and out oven during your machine working
4. Blackbody tuble have more thermal efficiency
5. Intelligent PID Temperature Control
6. Feeding and Taking up Are synchronous
7. Taking up can choose roll to roll .
8. Quick Tail Gas Treatment
9. Convenient to Maintain
10. Easy to Set up and Operate
11. Easy to open the caver to clean inside of oven
12. Easy to change the active carbon from the filter
Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
Specification:
| Product parameter | |
| Product name | Sulimation textile printing system |
| Model | CSR3200 |
| Include | One set of whole machine and one filter |
| Ink model | Sublimation ink |
| Available color | Dual CMYK |
| Print head | Piezo technology,3 Epson 4720print head |
| Max material width | 3300mm |
| Max printing width | 3200mm |
| Print head high control | 1.5mm/1.6mm(adjustable) |
| Printing resolution and speed | Resolution(DPI) Speed |
| 360*1800dpi(3pass) 65m2/h | |
| 720*120dpi(4 pass) 45m2/h | |
| 720*1800dpi(6pass) 35m2/h | |
| Media type | Polyester |
| Ink feeding system | 4 color mode:400cc cartriage*2color 800cc/color |
| Roll outer diameter | 3 inch |
| Max weight for roll material | 100kg |
| Head cleaning | Automatic/Manual |
| RAM | 128M |
| Printer power | AC380V(Adaptive) 50/60Hz±1Hz |
| Heater power consuption | 3500KW |
| Printer power consuption | 7.5KW |
| Weight | 890KG |
| Operation environment | 20-23oC Humidity:40-60% (non-condensing) |
