Product Details:
|
| Heater Power: | 6kw | Dimensions: | :4.56X1.18X1.56m+62*55*105cm |
|---|---|---|---|
| Automatic Grade: | Automatic | Voltage: | 110V/220V |
| Suitable Fabric Type: | Knitted Or Woven Cotton,linen,silk,wool,chemical Fiber,nylon.oxford Etc | Media Processing: | Roll To Roll + Auto Feeding + Auto Roll Up |
| Plate Type: | Roll To Roll Digital Fabric Printing Machine | Dimensions(l*w*h): | 4.56X1.18X1.56M*1 |
| Ink Type: | Pigment/Reactive/Sublimation | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, |
| Warranty: | 12 Months | Rip Software: | Onyx |
| Print Head: | 3*Epson 4720 Printheads | ||
| Highlight: | banner printing machine,textile digital printing machine |
||

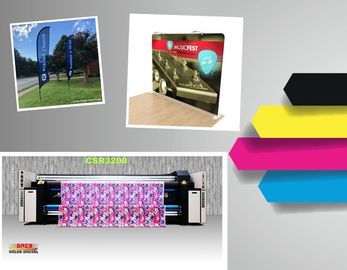

Product name: Cmyk Digital Falg Printing Machine Low Cost and Best quality
Description:
Print head:
Three Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Specifications:
| Product Parameter | |
| Model type | CSR3200 |
| Print head | 3 pieces Epson 4720 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 3300mm |
| Max printing width | 320000mm |
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h | |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Advantages:
1.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
2. The unique print platform design to make the cloth always smooth in the process of printing.
3. Unique filtering lampblack system, make the picture very clean.
4. Taking up and feeding roller are inflatable roller.
5. Taking up and feeding fabric are smoothly
6.NEW technology on Epson 4720, less ink consumption
7.High working stability, industrial performance
Application industry:
1), personality print: such as shops, cell phone decoration shop, personality gift shop.
2), advertising industry: indoor and outdoor advertising.
3), products proofing: all kinds of traditional printing sample production.
4), studio: digital image production.
5), clothing industry: sample print or character pattern of color printing.
