Product Details:
|
| Automatic Grade: | Automatic | Warranty: | 1 Year |
|---|---|---|---|
| Keywords: | Sublimation Machine | Product Name: | Sublimation Textile Heat Transfer Printer |
| Ink: | Pigment Ink Sublimation Ink | Print Head: | Epson 4720 |
| Resolution: | 1800DPI | Plate Type: | Digital Printing,Textile Printer,Roll To Roll |
| Ink Type: | Sublimation Ink | Color: | 4 Colors (CMYK) |
| Highlight: | large format printers,fabric printer machine,large format plotter |
||

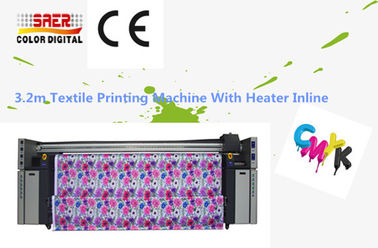

Machine Description:
1．3 pieces Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.
2． Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit
3．X axis and Y axis are using AC servo motors.
4.Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system, make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
Printing resolution and speed
| Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Machine Features:
1. Intelligent print head cleaning device,supplys safe and convenient printhead cleaning and protection function
2. Equipped with the feeding motor Positive and negative transfer function ,taking and feeding constanttension transmission system
3. The unique print platform design to make the cloth always smooth in the process of printing
4. Unique filtering lampblack system,make the picture very clean
Taking up and feeding Roller are inflatable roller
Taking up and feeding fabric are smoothly
Machine specification:
| Product Parameter | |
| Model type | CSR3200 |
| Print head | 3 pieces Epson 4720 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 3300mm |
| Max printing width | 320000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Procuct Service :
10 years experience of printing equipment industry
Professional team, software engineers, hardware engineers, marketing staff
Comply with CE standards.
Excellent pre-sales and after-sell service
24 hours online technical support
One year warranty for all machine.
Every Inkjet Printer must get through strict adjustment and testing before delivery.
Products Be CE Approved:
Usage:
1. All printer are new, pack by wooden case ; shipped by sea.
2. We will use appropriate materials for a reasonable, secure packing of your goods. If goods are damaged during the transport, please inform our service department within 3 days after goods are received.
