Product Details:
|
| Function: | Print And Heat | Ink: | Dye Sublimation Ink |
|---|---|---|---|
| Printhead: | Two PCS Epson DX5 | Volatge: | 380V |
| Gross Power: | 6.5KW | Ink Supply Model: | Continuous Ink Supply |
| Application: | Flag Printing | Package Size: | (L*W*H):3350*1070*1550mm |
| Highlight: | mimaki digital printing machine,digital fabric printer,continuous inkjet printer |
||
Product name: Indoor And Outdoor Exhibition Display Digital Textile Fabric Plotter For Flag Making
Product Feature:
1. Direct Print image into fabric.
2. This machine with print and heat in one machine Save price and save place.
3. It is adopt EPSON DX5 printhead with high precision.
4. This machine max print width 2.3m.
Product Technical Data:
|
Product Parameter |
||||||||
| Model | CSR 2200 | |||||||
| Print head | Piezo texhnology,Epson DX5 print head | |||||||
| Ink | Sublimation ink,Reactive ink,Acid ink | |||||||
| Color mode | 4*4 color | |||||||
| Nozzles | (180nozzles*8lines)*2head | |||||||
| Print head higher | Adjustable | |||||||
| Ink supply mode | Continuous ink supply | |||||||
| Max meterials width | 2200mm | |||||||
| Max printing width | 2100mm | |||||||
| Printing resolution and speed | Resolution | speed | ||||||
| 720*360dpi 2pass | 40sqm/h | |||||||
| 360*1080dpi 3pass | 32sqm/h | |||||||
| 720*720dpi 4pass | 22sqm/h | |||||||
| 720*1080dpi 6pass | 18sqm/h | |||||||
| 720*1440dpi 8pass | 12sqm/h | |||||||
| Roll owter diameter | 3 Inch | |||||||
| Max weight for roll materials | 100kg | |||||||
| Interface | USB 2.0/HIUSB | |||||||
| RAM | 128M | |||||||
| Printer with heater power | AC220V 50/60Hz | |||||||
| Power consumtion | 6.5KW | |||||||
| Environment | Temperature:20-32℃ | |||||||
| Humidity:40-60℃(Non-condensing) | ||||||||
| weight | 780kg | |||||||
Product Advantages :
1. Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
2. The printed image color is bright and vivid with nice color gamut.
3. Rapid speed and various printer to choose.
4. It is simple and leave out heat transfer process, one person can operates with high efficency and short time.
5. Low cost and no need of any kind transfer paper, liner breaking the highest costs performance.
Product Application:
Textile, flag, poster, banner, tablecloth, wall pictures, interior decoration, indoor and outdoor printing etc.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manual, and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairmen and replacement by international courier.
4. We are support oversea service.

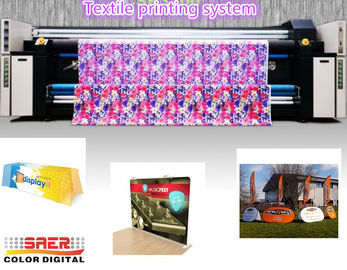

Product Picture:
