Product Details:
|
| Elements: | Mimaki JV33 And SR 1600 | Type: | Digital Textile Printer |
|---|---|---|---|
| Max Resolution: | 1440 DPI | Max Materials WidthMax Materials Width: | 160CM |
| Ink Supply Model: | Continuous Ink Supply | Print Head: | Epson Piezo DX5 |
| Include: | Mimaki JV33 Printer And 1.6m Sublimation Heater With Filter Fan | Available Ink: | Sublimation,Reactive And Pigment Ink |
| Print Speed: | 15.5sqm/h In 4 Pass | Printing Interface: | Connect With Computer |
| Rip Software: | Maintop 5.3 Rip Software Or Onyx Optional | Available Media: | Polyester,Cotton,Silk,Linen And So On |
| Highlight: | mimaki sublimation printer,mimaki fabric printer |
||

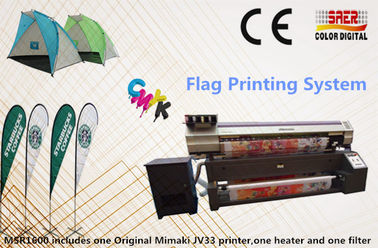

Product name : Indoor and Outdoor Mimaki Textile Printer for Polyester , Cotton , Linen
Quick Details:
a. Mimaki JV33-160 textile Printer
b. 1.8m Sublimation Heater(SR 1800)
c. Filter Fan
Specification:
- Low cost
- High productivity
- Directly print on textile Fabric
Print Speed:
| Printing resolution and speed | Resolution(dpi) |
Speed
|
| 540x720(6pass) |
10.5m2/h
|
|
| 720x720(4pass) |
15.5m2/h
|
|
| 720x720(8pass) |
7.7m2/h
|
|
| 1440x720(8pass) |
5.9m2/h
|
|
| 1440x1440(16pass) |
3.0m2/h
|
Detailed Specification:
| Product Name | Mimaki Textile Printer | |
|
Model |
MSR1633 |
|
| Include | Mimaki JV33 With SR 1600 Heater | |
|
Print head |
Piezo technology ,Epson DX5 printer head |
|
|
Ink |
Sublimation ink,reactive ink and pigment ink |
|
|
Color mode |
Dual KCMY(2C,2M,2Y,2K) |
|
|
Nozzles |
180nozzles x 8lines |
|
|
Print head higher |
1.5mm - 2.5mm(Adjustable) |
|
|
Ink supply method |
Block memed |
|
|
Max materials width |
1625mm |
|
|
Max printing width |
1600mm |
|
|
Media Core Size available |
2 inch /3inch |
|
|
Maximum weight for roll material |
40Kg |
|
|
Interface |
Ethernet 10Base-T |
|
|
RAM |
128M |
|
|
Printer power |
AC100-120V/AC220-240V(Adaptive).50/60Hz±1Hz |
|
|
Sublimation machine |
AC220-240V.16A.50/60Hz±1Hz |
|
|
Power consumption |
Direct dye sublimation heater 3500W |
|
|
Printer 5000W |
||
|
Environment |
Temperature:20-32°C,Humidity:40-60% |
|
| Packages |
3150X1000X1180mm 262x75x105mm |
|
Advantages:
1. Wider application field
After the modify of pannel board,this solution can convert the Mutoh printer to print images on Fabric directly.improved the application of heat transfer paper printing and wall paper printing.
2. Tension structures keep the printing material flat
Equipped with tension structure on front side and back side, as to keep the printing media flat. Even the artificial loaded media is not in the perfect straight status, this system can automatically correct the skewing in printing process.
3. Efficient heater
work together with the sublimation heater,with high temperature,Textile Printing Ink will be dried instantly before be collected by Automatic Take Up Roller.it can fade the color of printed image,the complated fabric can use to make flag ,banner and for home decoration directly.
4. Printing quality be ensured
The Media Collecting and Feeding System are synchronized so that printing quality be ensured.solve the stepping problem.
5. Bulk ink system
With this CISS, user can not only have similar image quality, but also avoid to use the expensive original inks.
6. Easy installation process
Even users with no experience can operate it within 2 hours.
SR 1800 Heater:
Application:
On polyester fabric:outside to make flag,act fast show etc.
indoor to make curtain,table cloth,wallpaper etc.
On Cotton fabric: to make clothes,bedsheets directly.
On Linen fabric:to make skirts etc.
After Sales Service:
Detail Pictures:
Printed Samples:
| Polyester | Cotton | Linen |
|
|
|
