Product Details:
|
| Ink: | Sublimation,Reactive,Pigment Ink | Application: | Indoor & Outdoor Advertising Field |
|---|---|---|---|
| Color & Page: | Multicolor | Color Mode: | Dual CMYK |
| Voltage: | 380V | Rip Software: | ONYX |
| Compatible OS: | Windows XP & Windows 7 | Include: | One 3.2m All-in-one Printing System And One Filter |
| Material: | Polyster,Cotton,Silk And Wool Fabric | Gross Power: | 6500W |
| Highlight: | banner printing machine,textile digital printing machine |
||

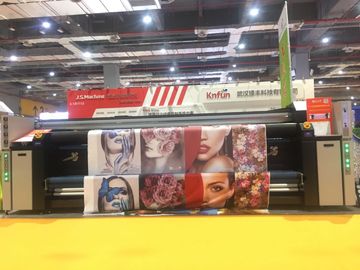

Product name : SAER Digital Fabric Printing Machine with high solution / Flag printing system
Machine Specification:
| Product Parameter | |
| Model type | CSR3200 |
| Print head | 3 pieces Epson 4720 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 3300mm |
| Max printing width | 320000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Machine working Speed:
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Features:
Printer:
1. Double Epson DX7 print head, with fast print speed, long lifespan, high precision.
2. Printing groove designed specially for fabric printing to collect waste ink and keep fabric clean.
3. HIWIN mute guide rail,Germany IGUS silent drag chain,make the printing environment more quieter.
4. Refillable ink cartridge reduces production cost.
Heater:
1. Ceramic heating tube: Heating fast and well distributed
2.Feeding and taking up inflatable roller.
3. Front and back stainless steel oscillating axles make the fabric feeding smoothly without drape.
4. Intelligent Temperature control system. (0°C----300°C adjustable)
5. Discharge slot design helps to keep the heating tube clean and easy to wipe off the oil and dust.
Filter:
1. Exhaust pipes fully discharge the smoke from the tube.
2. Carbon can be inputted easily, it makes the environment odorless and smokeless.
3. Discharge slot is easily to clean.
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

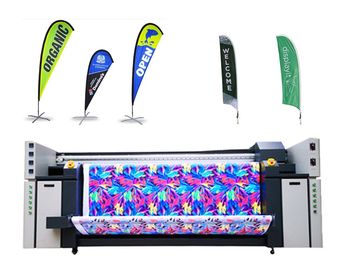

Outside: Advertising materials to make flag,roll up banner, act fast show and so on.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manual, and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
