Product Details:
|
| Type: | Heat Press Machine | Color & Page: | Multicolor |
|---|---|---|---|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Printing Shops, Textile Industry | Voltage: | 110v / 220v / 380v |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty:: | One Year |
| Package: | Non Fumigation Wooden Box | Drum Diameter: | 600mm |
| Highlight: | sublimation heat press machine,fabric calender machine |
||

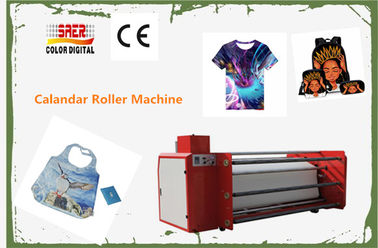

Product Name: CE Certification Multifunctional Digital fabric roll to roll calander heat press machine sublimation
Feature: It's a multi-functional machine which is designed especially for both roll to roll transfer machine.
Machine Specification:
| Model | SRT600-1600 |
| Working Vatage(V) | Ac 50~60Hz, three-phase four-wire, 380V |
| Current | 55A |
| Power | 36kw |
| Temperature Range(℃) | 0—399 |
| Speed range | 150meters per hour |
| Heating Time | around one hour |
| Transfer width | 1600mm |
| Number of heating tubes | 24 pieces |
| Package Size | 2600mm*1300mm*1500mm |
| Weight | 1800kg |
Why use oil conduction heating technology?
Roller sublimation printing machine commonly adopt the design of heating tube inside the tube, heating tube power generation after heat, heat will be around the radiation, the use of heat transfer oil as a medium, high heat transfer efficiency and uniformity. The machine is running, the heat transfer oil is always located in the lower part of the roller and a steady stream of heat transfer to the roller surface.
The heat-conducting oil has the property of resisting thermal cracking and chemical oxidation, has good heat-transfer efficiency, fast heat-dissipation and good thermal stability. A very high operating temperature is obtained at almost atmospheric pressure. Which can greatly reduce the high-temperature heating system operating pressure and safety requirements and improve the system and equipment reliability.
Application:
