Product Details:
|
| Condition: | New | Automatic Grade: | Automatic |
|---|---|---|---|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Printing Shops, Textile Industry | Voltage: | 110v / 220v / 380v |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty:: | One Year |
| Package: | Non Fumigation Wooden Box | Drum Diameter: | 600mm |
| Highlight: | sublimation heat press machine,fabric calender machine |
||

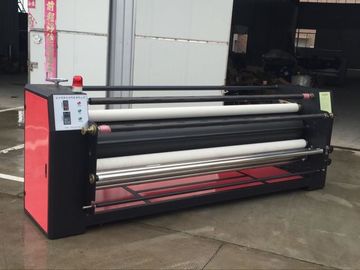

Product Name: Popular roll calander heater heat press transfer textile roller machine
Machine Specification:
| Model | SRT600-1700 |
| Working Vatage(V) | Ac 50~60Hz, three-phase four-wire, 380V |
| Current | 55A |
| Power | 36kw |
| Temperature Range(℃) | 0—399 |
| Speed range | 150meters per hour |
| Heating Time | around one hour |
| Transfer width | 1600mm |
| Number of heating tubes | 24 pieces |
| Package Size | 2600mm*1300mm*1500mm |
| Weight | 1800kg |
Advantages of calander heat press machine :
- Aligning Blanket Automatically
- Detecting Temperature on the Surface
- Filling Oil Drum to 100% Full (Saving 30% Power)
- Controlling Temperature Precisely (Controllable Silicon Solid State Relay)
- Minimizing Maintenance Effort (Slip Ring)
- At Least 70% Blanket Coverage
- Blanket Tension Controlled by Piston
- Fabric/Transfer Paper/Tissue Paper Tension Controlled by Compressed Air
Machine Details :
1. The most advanced technology and imported units arew adopted by machine controlling system with automatic positioning , accuracy together with security ,electronic constant temperature controlling wtih high accuracy, long service life and other features
2. Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature
3. Printing speed is equipped with continuous speed adjustment system ,feeding equipment is convenient for operation ith swiftness and high reliablity.
4 Equipped with continuous speed adjustment system,you can adjust printing speed as you need ,The roller was heating up with oil and temperature heating system.
5. Roller heat transfer Digital t shirt printing machine, one year warranty

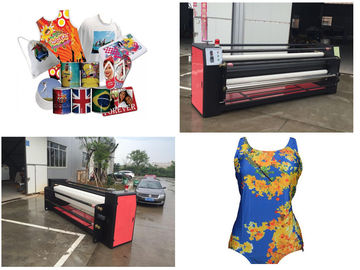

Application:
Why Choose SARE roll heat press machine?
1. Free online consultation
The technicians or sales will keep online. No matter what kind of technical questions that you may have, you would get a clear answer from our professional teams.
2. Free guidance
If you are able to help us get the visa and also would like to bear the costs involved like flight tickets, food, accommodation, etc, we can send our most excellent technicians to your office, and they will give you a full guidance.
3.Our engineer can service oversea.
