Product Details:
|
| Function: | Multiple-surface Sublimation | After-sales Service: | Rovided: Online Support, Free Spare Parts, Overseas Third-party Support A |
|---|---|---|---|
| Color: | Varies For Choose | Temperature Range: | 0-399 Degree |
| Voltage: | 220/380/420 Three-phase | Roll Diameter: | 600mm |
| Place Of Origin: | Shanghai, China | ||
| Highlight: | fabric calender machine,roll to roll heat transfer machine |
||

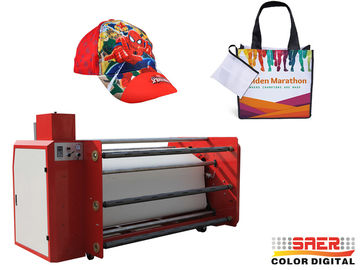

Product name : 1.6m wide roller type sublimation printing heat press machine/rotary calander for transfer printing
Machine Parameter:
| Model | SRT600-1600 |
| Working Vatage(V) | Ac 50~60Hz, three-phase four-wire, 380V |
| Current | 55A |
| Power | 36kw |
| Temperature Range(℃) | 0—399 |
| Speed range | 150meters per hour |
| Heating Time | around one hour |
| Transfer width | 1600mm |
| Number of heating tubes | 24 pieces |
| Package Size | 2600mm*1300mm*1500mm |
| Weight | 1800kg |
Product Description:
1. Heating hose heats oil reaching 200℃ within 45 min, temp different ±1℃
2. Special seamless steel tubes structure the heating drum, high temperature resistance, aging resistance
3. Special designed for tube to avoid the heating drum oil leaking.
4. Good sealing to keep the conduct oil not oxidized, thus avoid poor flowing ability and temperature difference on different parts of heating drum.
5. Convenient to add heat conduction oil, high security performance with anti-explosion through automatic turn off.
6. Adopt simultaneous shaft adjustment and pressure balancing shaft to keep the pressure on the blanket is consistent with that on the heating
roller, Completely solved the problem of cooling the blanket while turning off the machine or while power off.
7. Frequency conversion governor which freely adjust speed.
8. Releasing-laying system as a while part in machine, deliver the paper or fabric exactly parallel without deviation.
9. Section aluminum structured the machine body, easy assembly and disassembly, ensure the machine precision
Why use oil conduction heating technology?
Roller sublimation printing machine commonly adopt the design of heating tube inside the tube, heating tube power generation after heat, heat will be around the radiation, the use of heat transfer oil as a medium, high heat transfer efficiency and uniformity. The machine is running, the heat transfer oil is always located in the lower part of the roller and a steady stream of heat transfer to the roller surface.
The heat-conducting oil has the property of resisting thermal cracking and chemical oxidation, has good heat-transfer efficiency, fast heat-dissipation and good thermal stability. A very high operating temperature is obtained at almost atmospheric pressure. Which can greatly reduce the high-temperature heating system operating pressure and safety requirements and improve the system and equipment reliability.
Our Pakage and delivery:
Application :
