Product Details:
|
| Type: | Heat Press Machine | Color & Page: | Multicolor |
|---|---|---|---|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Printing Shops, Textile Industry | Voltage: | 110v / 220v / 380v |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty:: | One Year |
| Package: | Non Fumigation Wooden Box | Drum Diameter: | 600mm |
| Highlight: | sublimation heat press machine,roll to roll heat transfer machine |
||

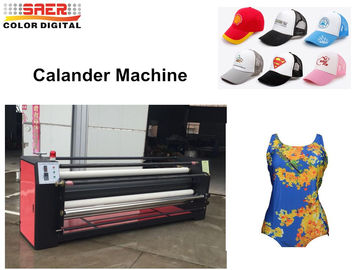

Product Name: 1.6m Multifunctional Digital fabric roll to roll calander heat press machine sublimation
Machine Specification:
| Model | SRT600-1600 |
| Working Vatage(V) | Ac 50~60Hz, three-phase four-wire, 380V |
| Current | 55A |
| Power | 36kw |
| Temperature Range(℃) | 0—399 |
| Speed range | 150meters per hour |
| Heating Time | around one hour |
| Transfer width | 1600mm |
| Number of heating tubes | 24 pieces |
| Package Size | 2600mm*1300mm*1500mm |
| Weight | 1800kg |
Main Feature of Calander :
1. To protect workers hand into the roller (when they are working)
2. Correct the deviation of blanket automatically,intelligent adjustment.
3. To aviod the scissor damage the blanket
4. Correct the deviation of conveyor automatically,To aviod damage the conveyor beacuse of the deviation.
5. The Blanket fled the roller competely,About 8cm distance.Don't need cooling when you want to stop the machine,More save energy and To prevent the blanket burn out.
6. Machina have explosion-proof equipment,More safety.
7. The Blanket synchronously forward and backwards automatically,More save manpower.It can also adjust by hand.
Why use oil conduction heating technology?
Roller sublimation printing machine commonly adopt the design of heating tube inside the tube, heating tube power generation after heat, heat will be around the radiation, the use of heat transfer oil as a medium, high heat transfer efficiency and uniformity. The machine is running, the heat transfer oil is always located in the lower part of the roller and a steady stream of heat transfer to the roller surface.
The heat-conducting oil has the property of resisting thermal cracking and chemical oxidation, has good heat-transfer efficiency, fast heat-dissipation and good thermal stability. A very high operating temperature is obtained at almost atmospheric pressure. Which can greatly reduce the high-temperature heating system operating pressure and safety requirements and improve the system and equipment reliability.
Application:
