Product Details:
|
| Function: | Multiple-surface Sublimation | After-sales Service: | Rovided: Online Support, Free Spare Parts, Overseas Third-party Support A |
|---|---|---|---|
| Color: | Varies For Choose | Temperature Range: | 0-399 Degree |
| Voltage: | 220/380/420 Three-phase | Roll Diameter: | 600mm |
| Place Of Origin: | Shanghai, China | ||
| Highlight: | fabric calender machine,roll to roll heat transfer machine |
||

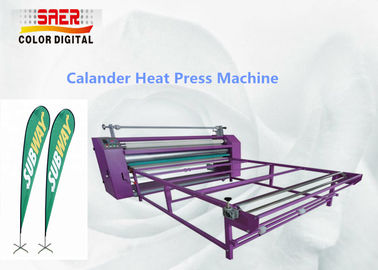

Product name : Large Format Roller Textile Paper Printing Sublimation Heat Press Machine
Features:
1) Even heat platen area;
2) Super heater technology;
3) Pressure adjusted easily;
4) Teflon coated on Hot Plate Surface
5) The cheapest T-shirt heat press machine with strong and safe package.
6.) Use to transfer printing images onto T-shirts, sweatshirts, mouse pads, license plates, magnetic material, bags, and much more!
7.) Thermometer for heat platen temperature, Adjustable thermostat.
8.) No color difference after heat transfer.
Machine Parameter:
| Model | SRT600-1800 |
| Working Vatage(V) | Ac 50~60Hz, three-phase four-wire, 380V |
| Current | 60A |
| Power | 40kw |
| Temperature Range(℃) | 0—399 |
| Speed range | 150meters per hour |
| Heating Time | around one hour |
| Transfer width | 1800mm |
| Number of heating tubes | 24 pieces |
| Package Size | 2800mm*1300mm*1500mm |
| Weight | 2000kg |
Product Description:
1. Heating hose heats oil reaching 200℃ within 45 min, temp different ±1℃
2. Special seamless steel tubes structure the heating drum, high temperature resistance, aging resistance
3. Special designed for tube to avoid the heating drum oil leaking.
4. Good sealing to keep the conduct oil not oxidized, thus avoid poor flowing ability and temperature difference on different parts of heating drum.
5. Convenient to add heat conduction oil, high security performance with anti-explosion through automatic turn off.
6. Adopt simultaneous shaft adjustment and pressure balancing shaft to keep the pressure on the blanket is consistent with that on the heating
roller, Completely solved the problem of cooling the blanket while turning off the machine or while power off.
7. Frequency conversion governor which freely adjust speed.
8. Releasing-laying system as a while part in machine, deliver the paper or fabric exactly parallel without deviation.
9. Section aluminum structured the machine body, easy assembly and disassembly, ensure the machine precision
Applications:
1) This machine can be sublimation transfer paper by thermal transfer on cotton, hemp, chemical fiber fabrics, economical and practical.
2) For large banners, flags, non-woven fabrics, apparel fabrics, towels, blankets, mouse pads and other products for sublimation transfer, especially the piece continuous transfer fabric.
