Product Details:
|
| Product Name: | Digital Fabric Printing Machine | Max Resolution: | 1800DPI |
|---|---|---|---|
| Type: | Inkjet Printer | Print Head: | Epson 4720*3 |
| Ink Supply Model: | Continuous Ink Supply | Max Materials Width: | 3300mm |
| Rip Software: | Maintop 5.3 Rip Software | Ink: | Sublimation,Reactive And Pigment Ink |
| Material: | Polyster,Cotton,Wool And Silk | Print Speed: | 45 Sqm / H In 4 Pass |
| Highlight: | large format printers,fabric printer machine,large format plotter |
||

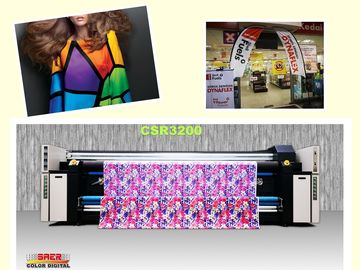

Dual Cmyk Pigment ink Fabric Plotter Printer For Fabric Printing
Specifications:
|
Product parameter |
|
|
Model |
CSR3200 |
|
Print head |
Piezo technology, Epson 4720 printer head |
|
Ink |
Sublimation ink,Reactive Ink,Pigment Ink |
|
Color model |
Dual CMYK |
|
Printer head higher |
15mm / 6mm ( Adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
3300mm |
|
Max printing width |
3200mm |
|
Printing resolution and speed |
Resolution speed |
|
360x1800dpi(3pass) 65 m²/h |
|
|
720x1200dpi(4pass) 45 m²/h |
|
|
720x1800dpi(6pass) 35 m²/h |
|
|
Roll diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 3.0 |
|
RAM |
128M |
|
Printer power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Sublimation machine |
AC220-240V. 16A. 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3500W |
|
Printer 5500w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
Description:
1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable
6· Quick Tail Gas Treatment
7· Convenient to Maintain
8· Easy to Set up and Operate
9. Easy to load the media in and out oven during your machine working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
12. Easy to change the active carbon from the filter
13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
Advantages:
Machine Details:
Application:
Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show,feather flag and so on.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
