Product Details:
|
| Product Name: | SRT600-1700 Calander Heat Press | Usage: | Rotary Heat Press Transfer Machine |
|---|---|---|---|
| Suitable For: | Cloths Printer | Type: | Flatbed Printer |
| Temperature Range: | 0-399 Degree | Voltage: | 380 |
| Roll Diameter: | 600mm | Heating Type: | Oil Heat |
| Automatic Grade: | Automatic | Applicable Industry: | Garment Shops, Printing Shops, Advertising Company |
| Highlight: | fabric calender machine,roll to roll heat transfer machine |
||

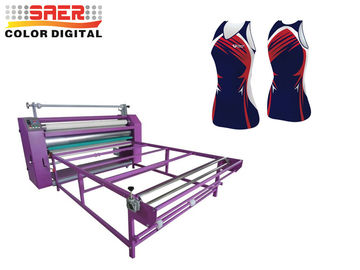

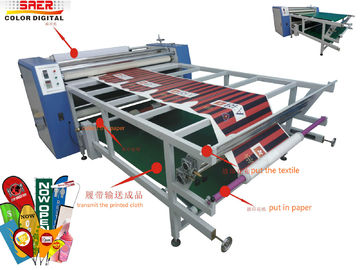

Calander Printing Machine Rotary Heat Press Printer Sublimation Heat Transfer Printer
Product Advantages:
1). Oil heating. Stainless steel heating tube direct heats the oil, temperature raise rapidly.
2). Multifunction. It can work with roll to roll fabric, either cut piece fabrics.
3). Outstanding Drum. Oil drum is the core and key parts for rotary heat press machine. Our oil drum is high qui;ity, it's production technique, such as advanced machining, bending, welding by presion machines, this makes it perfect quality and high security.
4). Supreme Blanket. It is excellent heat-proof materials and its life is better.
5). feeding rollers can also feed the tissue paper which protects the blanket clean.
6). High speed for production.
7). Automatical conveyor belt. It is convenient to collect the printed fabrics.
8). Printing quality far exceed other factories in China. Vivid and bright.
PARAMETERS OF CALANDER
| Model | SRT600-1700 |
| Working Vatage(V) | Ac 50~60Hz, three-phase four-wire, 380V |
| Current | 55A |
| Power | 36kw |
| Temperature Range(℃) | 0—399 |
| Speed range | 150meters per hour |
| Heating Time | around one hour |
| Transfer width | 1600mm |
| Number of heating tubes | 24 pieces |
| Package Size | 2600mm*1300mm*1500mm |
| Weight | 1800kg |
| Roll diameter | 600mm |
Heat Press Machine Description:
Applications:
