Product Details:
|
| Ink: | Sublimation,Reactive,Pigment Ink | Application: | Indoor & Outdoor Advertising Field |
|---|---|---|---|
| Color & Page: | Multicolor | Color Mode: | Dual CMYK |
| Voltage: | 380V | Rip Software: | ONYX |
| Compatible OS: | Windows XP & Windows 7 | Include: | One 3.2m All-in-one Printing System And One Filter |
| Material: | Polyster,Cotton,Silk And Wool Fabric | Gross Power: | 6500W |
| Highlight: | Flag Continuous Inkjet Printer,6500W Continuous Inkjet Printer,Dual CMYK Continuous Inkjet Printer |
||

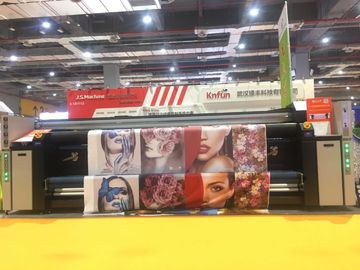

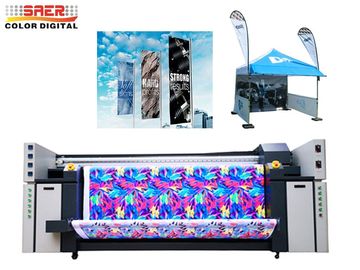

Product name : Factory price Voltage 380V Continuous Inkjet Printer Flag Printing System 6500W Gross Power
Specification:
| Product parameter | |
| Product name | Sulimation textile printing system |
| Model | CSR3200 |
| Include | One set of whole machine and one filter |
| Ink model | Sublimation ink |
| Available color | Dual CMYK |
| Print head | Piezo technology,3 Epson 4720 print head |
| Max material width | 3300mm |
| Max printing width | 3200mm |
| Print head high control | 1.5mm/1.6mm(adjustable) |
| Printing resolution and speed | Resolution(DPI) Speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*120dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h | |
| Media type | Polyester |
| Ink feeding system | 4 color mode:400cc cartriage*2color 800cc/color |
| Roll outer diameter | 3 inch |
| Max weight for roll material | 100kg |
| Head cleaning | Automatic/Manual |
| RAM | 128M |
| Printer power | AC380V(Adaptive) 50/60Hz±1Hz |
| Heater power consuption | 3500KW |
| Printer power consuption | 7.5KW |
| Weight | 890KG |
| Operation environment | 20-23oC Humidity:40-60% (non-condensing) |
Filter Specification:
| Power | 550w |
| Package size | 60*55*108CM(0.382CBM) |
| Net Weight | 64kg |
| Gross Weight | 80kg |
| Working Voltage | 220-240V 50HZ |
| Input Air Temperature | ﹥200℃ |
| Out Air Temperature | ﹤25℃ |
Features:
Printer:
1. Double Epson DX7 print head, with fast print speed, long lifespan, high precision.
2. Printing groove designed specially for fabric printing to collect waste ink and keep fabric clean.
3. HIWIN mute guide rail,Germany IGUS silent drag chain,make the printing environment more quieter.
4. Refillable ink cartridge reduces production cost.
Heater:
1. Ceramic heating tube: Heating fast and well distributed
2.Feeding and taking up inflatable roller.
3. Front and back stainless steel oscillating axles make the fabric feeding smoothly without drape.
4. Intelligent Temperature control system. (0°C----300°C adjustable)
5. Discharge slot design helps to keep the heating tube clean and easy to wipe off the oil and dust.
Filter:
1. Exhaust pipes fully discharge the smoke from the tube.
2. Carbon can be inputted easily, it makes the environment odorless and smokeless.
3. Discharge slot is easily to clean.
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag,roll up banner, act fast show and so on.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manual, and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
