Product Details:
|
| Max Resolution: | 1800DPI | Type: | Inkjet Printer |
|---|---|---|---|
| Condition: | New | Color Model: | Dual CMYK |
| Ink Supply Model: | Continuous Ink Supply | Rip Software: | Maintop 5.3 Rip Software |
| Ink: | Sublimation,Reactive And Pigment Ink | Material: | Polyster,Cotton,Wool And Silk |
| Print Speed: | 45 Sqm / Hour | ||
| Highlight: | 1800dpi Digital Textile Printing Machine,Dual CMYK Textile Printing Machine,45sqm/h Textile Printing Machine |
||

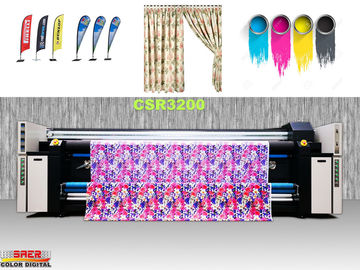

Product name: SAER Hot Sale Display Fabric With Three Epson 4720 Heads Fabric Printing System
Working speed :
| 360x1800dpi(3pass) 65m²/h |
| 720x1200dpi(4pass) 45m²/h | |
| 720x1800dpi(6pass) 25 m²/h |
Specifications:
Product parameter | |
Model | CSR3200 |
Print head | Piezo technology, Epson DX5 printer head |
Ink | Sublimation ink,pigment ink and reactive ink |
Color model | Dual KCMY |
Nozzles | (180 nozzles x 8 lines ) x2 heads |
Printer head higher | 15mm / 6mm ( Adjustable ) |
Ink supply model | Continuous ink supply |
Max materials width | 3300mm |
Max printing width | 3200mm |
Roll diameter | 3 Inch |
Maximum weight for roll material | 100kg |
Interface | USB 2.0 |
RAM | 1.2M |
Printer power | AC220-240V./AC220-240Adaptive 50/60Hz |
Sublimation machine | AC220-240V. 16A. 50/60Hz |
Power consumption | Direct dye sublimation heater 3500W |
Printer 5500w | |
Temperature | 20-32°C |
Humidity | 40-60% Non-condensing |
Advantages:
Automatic feeding and collecting structure:
1, Intelligent infrared heater and fan drying system;
2, The machine through different quality tests is stable and competent enough for mass production requirement.
3, No Pinch roller, let the fabric no wrinkle and print smoothly
4, Keep the fabric good air permeability after sublimation
5, Printing groove designed specially for fabric printing to collect waste ink and keep
fabric clean.
6, Patented ink tanks keep ink supply constantly.
Machine Details:
Printed Samples :
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
