Product Details:
|
| Condition: | New | Automatic Grade: | Automatic |
|---|---|---|---|
| Voltage: | 110V/220V | Print Head: | 3 Piecese Epson 4720 |
| Maximum Print Width:: | 2m | Material Withd: | 2.1m |
| Factory: | Shanghai ,China | ||
| Highlight: | Sublimation Ink Flag Printing Machine,2m Flag Printing Machine,Dual CMYK Flag Printing Machine |
||

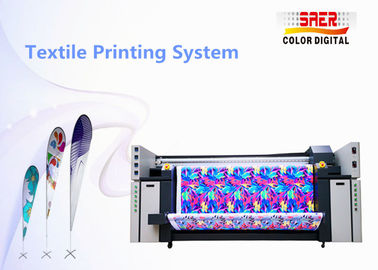

Product name: Digital printing machine / Fabric flag banner sublimation printer for sale
Specifications:
1. Constant temperature heating box
rapidly heating, good leakproofness ensure the temperature constant
2. Green smoke extraction filtration system
filter and sublimation smoke efficiently, keep the environment clean
3. open ink-supply system
Compatible with many brands of sublimation ink, easily to control the printing cost.
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson 4720 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 3300mm |
| Max printing width | 320000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Description:
1．Three Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.
2． Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit
3．X axis and Y axis are using AC servo motors.
4.Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system, make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
Machine working Speed:
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Competitive Advantage:
-Low cost and no need any transfer paper.
- Vibrant and bright colors
- Very good shelf-life
- Optimal ink fluidity and printability through piezo-heads
- Excellent image definition in direct printing
- Very good fastness properties
- Competitive price
- Good reducibility
- Appropriate for different ICC
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag, banner, act fast show and so on.
