Product Details:
|
| Ink Type: | Sublimation Ink, Pigment Ink | Condition: | New |
|---|---|---|---|
| Type: | Digital Printer | Automatic Grade: | Automatic |
| Color & Page: | Multicolor | Usage: | Fabric Printing |
| Software: | ONYK | Color Model: | Dual CMYK |
| Ink: | Disperse Ink / Sublimation Ink | ||
| Highlight: | Teardrop Flag Sublimation Printing Machine,Sublimation Printing Machine,CMYK Sublimation Printing Machine |
||

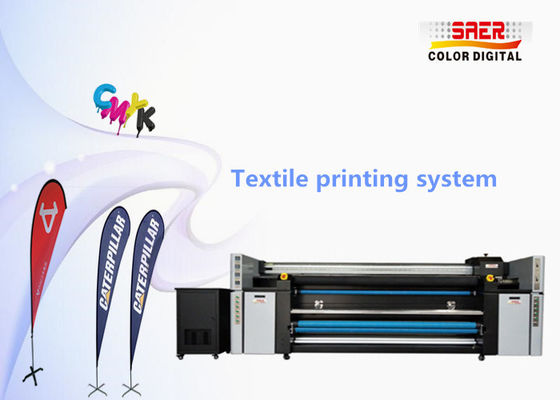

Product name: Large size sublimation printing machine / Teardrop flag printing system:
Maine Features:
Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
Printer working speed:
| Printing resolution and speed | Resolution(DPI) Speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1200dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h | |
Machine specification:
| Product Parameter | |
| Model type | CSR3200 |
| Print head | 3 pieces Epson high DIP head |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 3300mm |
| Max printing width | 320000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Product features:
1. Far Infrared Blackbody Tube Radiation Electro thermal Heating, our tuble can work at least 10000 hours.
2. Our machine have excellent heat insulation, can save more power for you.
3. Easy to load the media in and out oven during your machine working
4. Blackbody tuble have more thermal efficiency
5. Intelligent PID Temperature Control
6. Feeding and Taking up Are synchronous
7. Taking up can choose roll to roll .
8. Quick Tail Gas Treatment
9. Convenient to Maintain
10. Easy to Set up and Operate
11. Easy to open the caver to clean inside of oven
12. Easy to change the active carbon from the filter
Usage:
