Product Details:
|
| Ink Type: | Sublimation Ink , Pigement Ink | Automatic Grade: | Automatic |
|---|---|---|---|
| Plate Type: | Digital Printing,Textile Printer,Roll To Roll | Machine Condition: | New |
| Type: | Inkjet Printer | Warranty: | 1 Year |
| Color: | 4 Colors (CMYK) | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | CMYK Large Format Textile Printer,Large Format Textile Printer 1800dpi,Automatic Feeding Large Format Textile Printer |
||

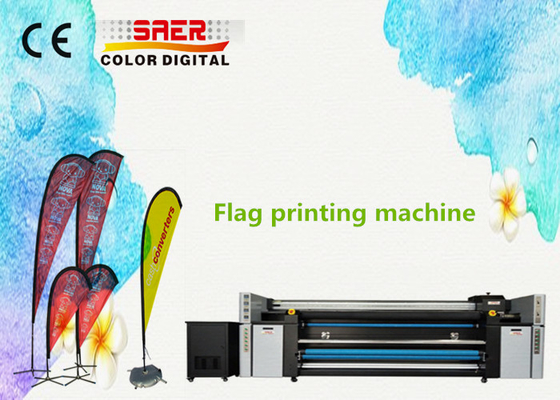

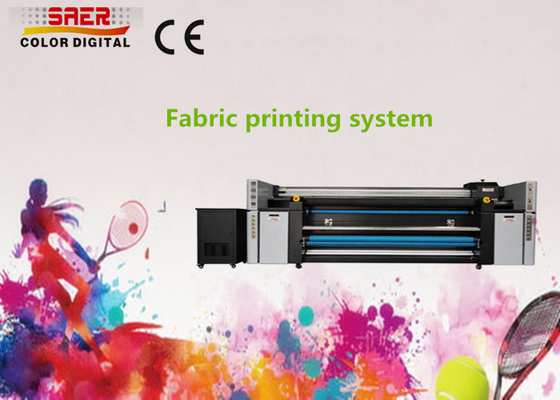

Product name: Teardrop flag printing system/High DIP large format textile printer
| Product name | Economic CSR2200 Sublimation Machine | ||
| Item No. | CSR 2200 | ||
| Printhead | EPSON | ||
| Number of Printhead | Three | ||
| Print Resolution | 1800dpi | ||
| ink | sublimation ink/pigment ink. | ||
| Maximum Print Width | 2000mm | ||
| Print Speed | 3 pass | 360x1800DPI | 65m²/h |
| 4 pass | 720X1200DPI | 45m²/h | |
| 6 pass | 720x1800DPI | 35m²/h | |
| Printer Head height | Adjustable 1.5~6mm | ||
| Ink | Type | Sublimation Ink, pigment ink | |
| Color | dual CMYK | ||
| Ink Supply System | Continuous Ink Supply System | ||
| Media | Maximum Width | 2000mm | |
| Feeding mode | Automatic feeding and taken-up system | ||
| weight | Sublimation machine net weight 800kg, gross weight 1000kg | ||
| power consumption | sublimation heater | Directly dye sublimation heater 3500w | |
| printer | printer 1000w | ||
| printer power | AC210-230v | 50-60HZ 16A | |
| temperature | 25-35°C | ||
| humidity | 35-65%(non-condensing) | ||
Dye Digital Printing
The latest Digital printers are used as the perfect solution for quantity prints. High resolution printing of up to 1800 dpi makes short work of the most detailed and highly complex designs.
Dye digitally printed flags and banners are ideal for indoor or outdoor use. The advantages are very clear on this process, very good print through giving greater visibility of you design or message.
High light-fastness is comparable to our dye screen printing High resolution printing give strong , sharp, excellent reproduction and superior rendering of dark colours.
Related Products
After Sale Service
1. one year guarantee for whole machine.
2. printhead and consumable parts are no guarantee.
3. we supply on line after-sale service by wechat/whatsapp/skype/ which one that is convenience for you.
4. if you have the need and pay the related cost, we could send engineer oversea for the technology support, more detail please contact us.
5. we supply all-life time technology support on line for free.
Welcome customer's any inquiry for the products.
