Product Details:
|
| Printing Maintenance: | Easy | Printing Technology: | Inkjet |
|---|---|---|---|
| Printing Resolution: | High | Printing Material: | Cotton & Polyester |
| Printing Automation: | High | Printing Durability: | Long Lasting |
| Printing Accuracy: | High | Printing Ink: | Eco-friendly Sublimation Ink & Pigment Ink |
| Highlight: | High Automation Digital Textile Printing Machine,360*1800dpi Digital Textile Printing Machine,Cotton Polyester Digital Textile Inkjet Printer |
||

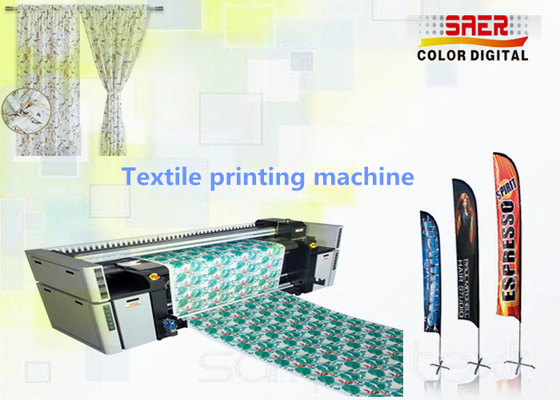

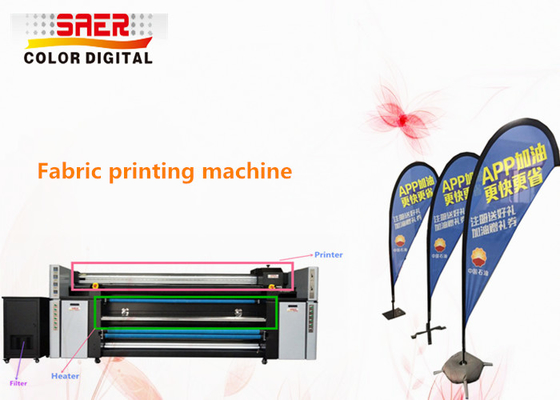

Product name: Low Cost High Automation Digital Textile Printing Machine for Cotton Polyester
Machine Printing Speed:
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Description:
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Advantages:
1.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
2. The unique print platform design to make the cloth always smooth in the process of printing.
3. Unique filtering lampblack system, make the picture very clean.
4. Taking up and feeding roller are inflatable roller.
5. Taking up and feeding fabric are smoothly
Machine Specification:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson print head |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Competitive Advantage:
NEW technology on Epson high resolution print head , less ink consumption
High Resolution up to 1440dpi
High Printing speed up to 45sqm/h
High working stability, industrial performance
High Productivity
Long Using Life
High Yield
Support three pieces Epson print head
Perfect Color Presentation
Application industry:
1), personality print: such as shops, cell phone decoration shop, personality gift shop.
2), advertising industry: indoor and outdoor advertising.
3), products proofing: all kinds of traditional printing sample production.
4), studio: digital image production.
5), clothing industry: sample print or character pattern of color printing.
