Product Details:
|
| Ink Type: | Pigment Ink | Condition: | New |
|---|---|---|---|
| Key Selling Points: | Multi Color | Lead Time (days): | To Be Negotiated |
| Selling Units:: | Single Item | Service: | Technical Support |
| Warranty: | 12 Months | Brand Name: | SAER |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Application: | Heat Transfer Pictures | Showroom Location: | Shanghai |
| Highlight: | 60cm DTF Printer,Heat Transfer DTF Printer,PET Film DTF Printer |
||

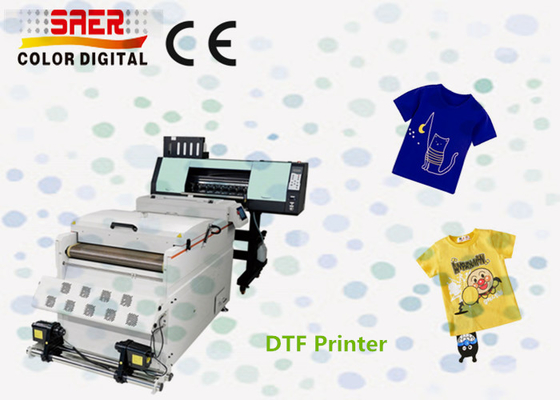

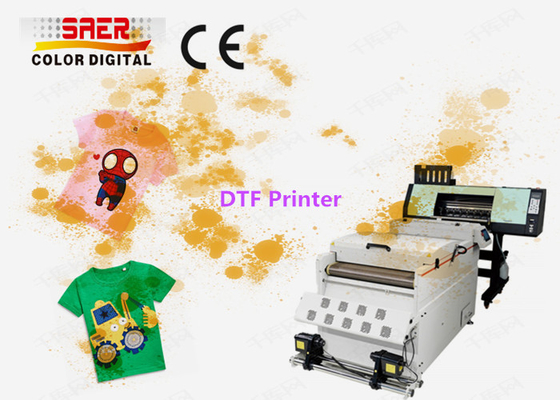

Product name: Digital 60cm Inkjet T-shirt Printing Machine Heat Transfer PET Film DTF Printer
DTF Printing system include: NEW intelligent DTF printer + touch screen convey or belt shaker
Machine Advantages:
1. Automatic induction of paper discharge and shortage alarm
2. Voice reminder for ink shortage+white ink circulation mixing
3. Anti collision of nozzle
4. One click pinch roller lever lifting
5. Platform heating
6. Optional: Print head automatic cleaning and moisturizing
Shaking and Color Fixing Machine :
| Model | H650 | Retractable media width | 0-600mm |
| Fan control | Shake powder control, Dusting control, Direction and quantity control | Rewinding function | Automatic induction winding |
| Material delivery method | Mesh belt conveyor, conductive belt | Rated voltage | 220V |
| Rated current | 23A | Rated power | 5kw |
| Energy consumption | 3.5-5kw | Net weight | 240kg |
| Machine size | L1953mm*W1002mm*H1092mm | Gross weight | 290kg |
| Machine package size | L1930mm*W1120mm*H1136mm |
Printer specification:
| Model |
CSR 6504
|
Machine Dimension | L1660*W750*H1620MM |
| Print had and quality | i1600-A1, 4pcs | Package Dimension | L1950*W900*H960MM |
| Printing width | 60cm | Net weight | 170KG |
| Media Type | PET Film | Gross weight | 235kg |
| RIP Software | ONYX | Voltage | AC 220V |
| Tempereture/Humidity | Tempreture: 20-30℃;Humidity:45-65% | Power | 350W |
Advantages:
1. Automatic induction of paper discharge and shortage alarm
2. Voice reminder for ink shortage+white ink circulation mixing
3. Anti collision of nozzle
4. One click pinch roller lever lifting
5. Platform heating
6. Optional: Print head automatic cleaning and moisturizing
Machine Features:
1. White ink circulation & stirring and all ink shortage alarm : So that the white ink can maintain a long-term stable supply without precipitation and blocking the nozzle
2. Rear and front plate heater : Print preheating, especially in cold weather, to ensure stable printing effect
3. Platform suction : Adsorb printing materials, so that the film does not arch and scratch the nozzle, so that the printing is smooth, accurate and
stable for a long time
4. Anti collision of nozzle : Protect the nozzle from being hit or scratched
5. Integrated auto-lifting ink station : Makes the maintenance and adjustment of ink stack very simple, accurate and easy to use
6.Print platform light strip : Provide good lighting for easy observation of printing
7. Graduated scale : It is convenient to judge and set printing parameters
Usage:
Our Service:
1.We will provide more precisely and efficiently manufacture and serve according to clients' requirement.
2. Check the raw material before starting production.
3.We have professional QC team to ensure your product more better.
4.Have the random inspection during the processing.
5.Make the 100% inspection before the shipments.
