Product Details:
|
| Printhead: | Two Pieces Epson DX5 | Print Speed: | 23 SQM/H |
|---|---|---|---|
| Print Material: | Sublimation Polyester | Use Ink: | Dye Sublimation Ink |
| Service: | Support Oversea Service | Printing Way: | Direct Print |
| Highlight: | sublimation printing machine,cmyk printing machine |
||

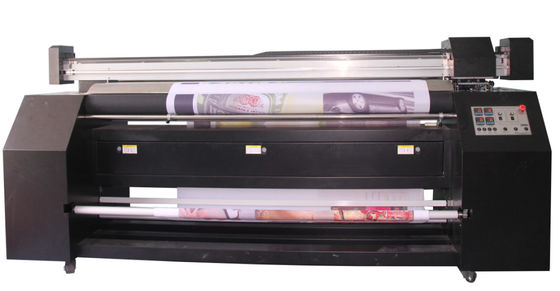

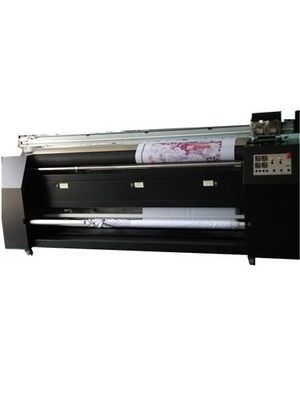

Product name: Direct Digital Textile Printing Machine Roll To Roll With Dye Sublimation Heating System
Product Feature
1. This Dye Sublimation Textile Printer Machine For Flag Can Direct Printing Sublimation Polyester.
2. It Adopt Newsest Epson DX7 Printhead With High Precison.
3. This Textile Printer Machine For Flag Use Dye Sublimation Ink . No Smell, no pollute.
Product Technical Data
|
Product Parameter |
||||||||
| Model | CSR 3200 | |||||||
| Print head | Piezo texhnology,Epson 5 printer head | |||||||
| Ink | Sublimation ink,Reactive ink,Acid ink | |||||||
| Color mode | 4*4 color | |||||||
| Nozzles | (180nozzles*8lines)*2head | |||||||
| Print head higher | Adjustable | |||||||
| Ink supply mode | Continuous ink supply | |||||||
| Max meterials width | 3200mm | |||||||
| Max printing width | 3100mm | |||||||
| Printing resolution and speed | Resolution | speed | ||||||
| 720*360dpi 2pass | 40sqm/h | |||||||
| 360*1080dpi 3pass | 32sqm/h | |||||||
| 720*720dpi 4pass | 22sqm/h | |||||||
| 720*1080dpi 6pass | 18sqm/h | |||||||
| 720*1440dpi 8pass | 12sqm/h | |||||||
| Roll owter diameter | 3 Inch | |||||||
| Max weight for roll materials | 100kg | |||||||
| Interface | USB 2.0/HIUSB | |||||||
| RAM | 128M | |||||||
| Printer with heater power | AC220V 50/60Hz | |||||||
| Power consumtion | 6.5KW | |||||||
| Environment | Temperature:20-32℃ | |||||||
| Humidity:40-60℃(Non-condensing) | ||||||||
| weight | 780kg 890kg | |||||||
Product Advantage :
1. Direct Print Image Into Fabric . It is dont need Transfer Machine
2. It is use dye sublimation ink , No smell, No Pollute
3. Adopt Newest Epson DX7 Printhead , With High Precision. No clog.
4. This machine with print and heat fuction in one machine . you dont need buy other heater transfer machine , Save money and space.
5. The printed image color is bright and vivid with nice color
6. Rapid speed and various printer to choose
Produtc Service :
1. This machine has One year warranty .
2. We are Support Oversea technical service and with all life techincal support.
Application Field
It is widely used in Textile, flag, poster, banner, tablecloth, wall pictures, interior decoration, indoor and outdoor printing etc
