Product Details:
|
| Condition: | New | Automatic Grade: | Automatic |
|---|---|---|---|
| Usage: | Cloths Printer, Fabric Printer | Color & Page: | Multicolor |
| Dimensions(L*W*H): | 7CBM | Gross Power: | 3.6KW |
| Highlight: | mimaki digital printing machine,continuous inkjet printer |
||

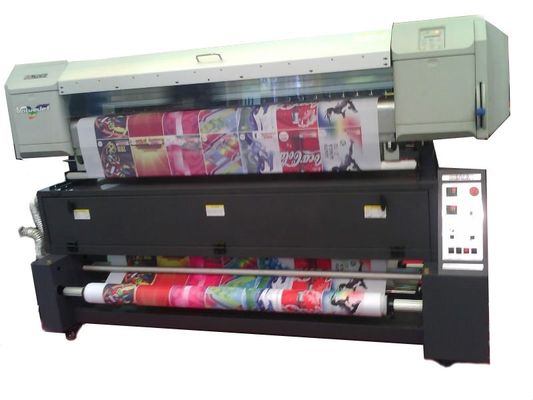

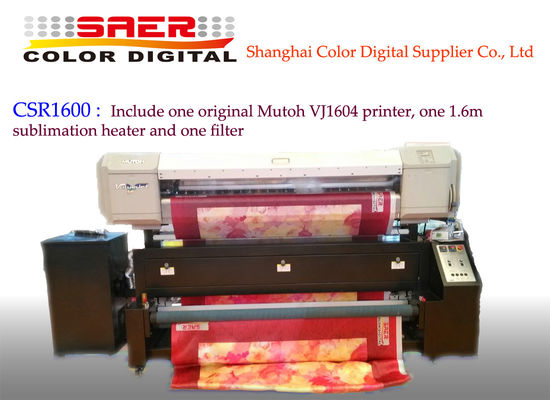

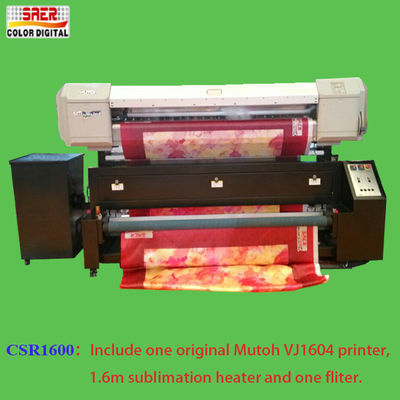

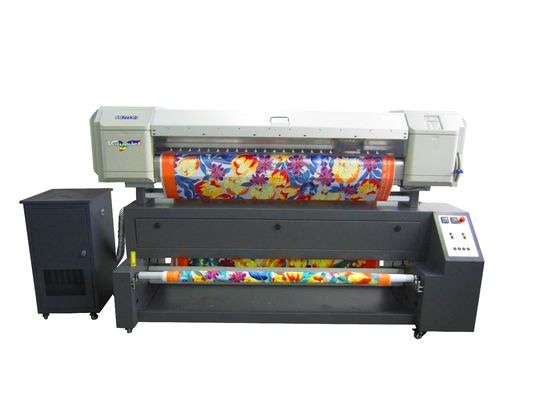

Far Infrared 1.6m Automatic Digital Fabric Printing Machine Multicolor
Product features:
1, Far Infrared Blackbody Tube Radiation Electro thermal Heating, our tuble can work at least 10000 hours.
2, our machine have excellent heat insulation, can same more power for you.
3, Easy to load the media in and out oven during your machine working
4, Blackbody tuble have more thermal efficiency
5, Intelligent PID Temperature Control
6, Feeding and Taking up Are synchronous
7, Taking up can choose roll to roll .
8, Quick Tail Gas Treatment
9, Convenient to Maintain
10, Easy to Set up and Operate
11, Easy to open the caver to clean inside of oven
12, Easy to change the active carbon from the filter
Product features:
1, Far Infrared Blackbody Tube Radiation Electro thermal Heating, our tuble can work at least 10000 hours.
2, our machine have excellent heat insulation, can same more power for you.
3, Easy to load the media in and out oven during your machine working
4, Blackbody tuble have more thermal efficiency
5, Intelligent PID Temperature Control
6, Feeding and Taking up Are synchronous
7, Taking up can choose roll to roll .
8, Quick Tail Gas Treatment
9, Convenient to Maintain
10, Easy to Set up and Operate
11, Easy to open the caver to clean inside of oven
12, Easy to change the active carbon from the filter
Our Oven Machine Specification:
| Power | 3.5KW |
| Working Width | 1600MM |
| Blackbody Tube Working Model | Far Infrared |
| Working Temperture | 100 to 250 °C |
| Tension | 0 to 1.2Kg |
| Working Voltage | 220~240V 50HZ |
| Take Up working Method | Directly out or Roll to Roll. |
| Take Up media diameter(roll to roll) | 300mm |
| Certification | CE Certificated |
| Available Printer | Mimaki, Roland , Mutoh and any Piezo Printer |
Our Filter Fans Specificaton:
|
Power |
360W |
|
Working Voltage |
220~240V 50HZ |
|
Package Size |
620X565X1100mm |
|
Weight |
60 Kg |
|
Input Air temperature |
>200 °C |
|
Out put Air temperature |
<25 °C |
|
Filter Medium |
Active Carbon |
|
Certification |
CE Certificated
|
