Product Details:
|
| Application: | Printing Flag | Print Material: | Sublimation Polyester |
|---|---|---|---|
| Printhead: | Two PCS Epson DX5 | Work Way: | Roll To Roll Directly Print |
| Highlight: | epson color printer,epson sublimation printer |
||

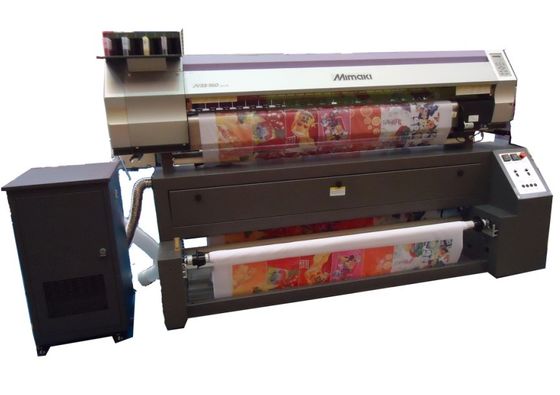

Mimaki 1.8M Direct World National Flag Printing Machine With Heating System
Product Feature
1. Adopt Epson DX7 Printhead,Piezo technology
2. With Dual CMYK color
3.1440 DPI nozzle
4. Max fabric width 1.9m
5. Use RasterLinkPro 5 rip software
6. Perfect work with SR1800 sublimation heater
7. work way roll to roll.
Product Techincal Data
| Mode | MSR1800(Include Mimaki TS34-1800A Printer and SR1800 Heater) | ||||||
| Print head | Piezo technology,Epson DX7 printer head | ||||||
| Ink | Sublimation ink | ||||||
| Color mode | Dual KCMY | ||||||
| Nozzles | 1440nozzlesx2head | ||||||
| Print head higher | 2/3mm,3/4mm,4/5mm(Optional) | ||||||
| Max materials width | 1900mm | ||||||
| Max printing width | 1800mm | ||||||
| Printing resolution and speed | Resolution(dpi) | speed | |||||
| 360x360(1pass) | 91m2/h | ||||||
| 540x720(4pass) | 32m2/h | ||||||
| 540x1080(6pass) | 22.2m2/h | ||||||
| 720x1440(8pass) | 13.5m2/h | ||||||
| Media | Size | 210mm~1910mm | |||||
| Thickness | 1.0mm | ||||||
| Roll inside diameter | 2 Inch/3 Inch | ||||||
| Roll owter diameter | 180mm | ||||||
| Maximum weight for roll material | 25Kg | ||||||
| Rip Software | RasterLinkPro 5 | ||||||
| Interface | USB2.0 | ||||||
| Printer power | AC100-120V/AC220-240V(Adaptive).50/60Hz±1Hz | ||||||
| Sublimation machine | AC220-240V.16A.50/60Hz±1Hz | ||||||
| Power consumtion | Direct dye sublimation heater 3800W | ||||||
| Printer 360W | |||||||
| Environment | Temperature:20-35°C,Humidity:35-65% | ||||||
| Weight | 600KG | ||||||
Product Advantage
1. Direct printing image into fabric .
2.Use dye sublimation ink . no smell, no pollute.
SR1800 Technical Data
|
Power |
3.8KW |
|
Working Width |
1800MM |
|
Blackbody Tube Working Model |
Far Infrared |
|
Heat Tuble Dimension |
2220MM |
|
Working Temperture |
100 to 250 °C |
|
Tension |
0 to 1.2Kg |
|
Working Voltage |
220~240V 50HZ |
|
Weight |
330Kg |
|
Certification |
CE Certificated |
|
Package |
High intensity standard carton package Non Fumigation |
|
Available Printer |
Mimaki, Roland , Mutoh and any Piazo Printer |

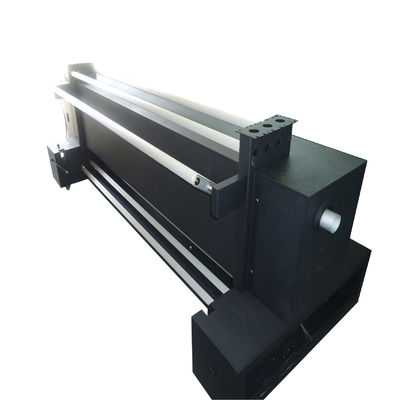

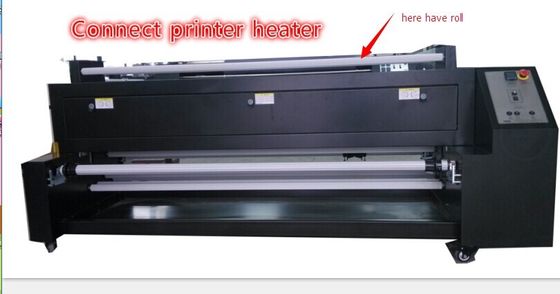

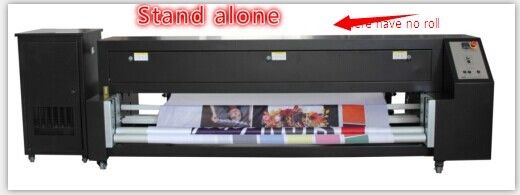

SR 1800 Heater Picture
Application Field:
Textile,flag,poster,banner, tablecloth,wall pictures,interior decoration, indoor and outdoor printing etc
