Product Details:
|
| Max Materials Width: | 3300mm | Application: | Indoor And Outdoor |
|---|---|---|---|
| Compatible OS: | Windows XP & Windows 7 | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Max Printing Width: | 3200mm . | Type: | Inkjet Printer |
| Highlight: | mimaki digital printing machine,continuous inkjet printer |
||

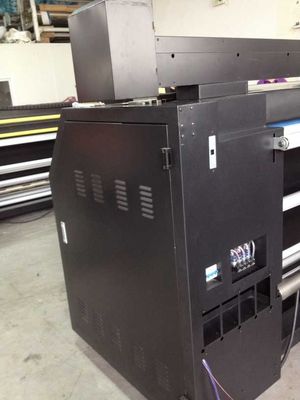

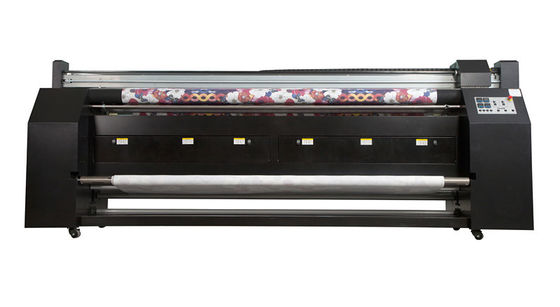

High resolution Mimaki Textile Printer / continuous inkjet printer
Specification:
|
Product parameter |
|
|
Model |
CSR3200 |
|
Print head |
Piezo technology, Epson DX7 printer head |
|
Ink |
Sublimation ink |
|
Color model |
Dual KCMY |
|
Nozzles |
( 180 nozzles x 8lines ) x2 head |
|
Printer head higher |
15mm/6mm ( adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
3300mm |
|
Max printing width |
3200mm |
|
Printing resolution and speed |
Resolution speed |
|
360 x 1080dpi 18m2/h |
|
|
540 x 720dpi 18m2/h |
|
|
720 x 720dpi 23m2/h |
|
|
360 x 2160dpi 16m2/h |
|
|
Roll owter diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 2.0 |
|
RAM |
1.2M |
|
Printer power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Sublimation machine |
AC220-240V. 16A. 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3500w |
|
Printer 100w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
|
Weigh |
890kg
|
Description:
1．Double Epson DX7 Print heads, faster speed, longer head life time. Feather printing funcation available, print heads correction and counterpoint are more easy.
2． Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit
3．X axis and Y axis are using AC servo motors.
4.Intelligent print head cleaning service, supplys safe and convenient print head cleaning and protection function.
5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system, make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10. Low cost and no need any transfer paper.
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag, banner, act fast show and so on.
