Product Details:
|
| Product Name: | Flag Making Machine | Application: | Indoor Decoration & Outdoor Adertising |
|---|---|---|---|
| Max Resolution: | 1440 DPI | Color Mode: | Double 4 Color(C-2,M-2,Y-2,K-2) |
| Voltage: | 380V | Gross Power: | 5.5KW |
| Print Head Type: | Epson DX7 * 2Pieces | Rip Software: | Maintop 5.3 Rip Software Or Neostampa 8 Optional |
| Compatible OS: | Win XP & Win 7 | Printing Interface: | Connect With Computer |
| Printing Media: | Coated Polyster Fabric,Cotton,Linen And Silk Fabric | Ink: | Sublimation,Reactive And Pigment Ink |
| Highlight: | textile digital printing machine,banner printing machine |
||

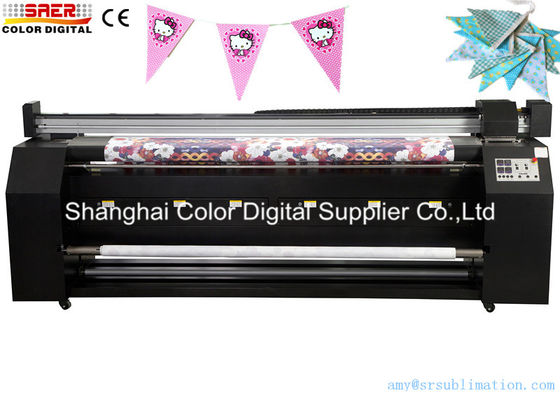

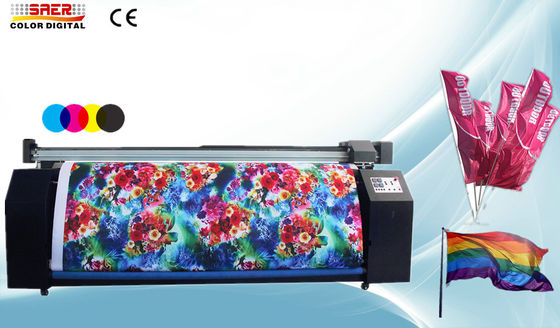

CE Passed Sublimation Flag Printing Machine 1440 DPI 380 Voltage
Specifications:
| Brand | SAER |
| Model | CSR 3200 |
| Print head | Piezo technology, Epson DX7 |
| Ink | Sublimation,Reactive and Pigment Ink |
| Color Mode | Dual CMYK |
| Nozzles | (180 nozzles * 8 lines) * 2 heads |
| Print Head Height | 1.5mm / 6mm(adjustable) |
| Ink Supply Mode |
Continuous Ink Supply |
| Max Printing Width | 3200mm |
| Roll Owter Diameter | 3 Inch |
| Max Weight For Roll Material | 100KG |
| Interface | USB 2.0 |
| RAM | 128M |
| Printer Power | 380V |
| Power |
Direct Dye Sublimation Heater 3500W Printer 2000W |
| Environment | temperature 20-32 degree |
| Weight | 1120KG |
Printing Resolution And Speed:
Resolution DPI Speed
720*360dpi 2 pass 40m²/h
360*1080dpi 3 pass 32m²/h
720*720dpi 4 pass 22m²/h
720*1080dpi 6 pass 18m²/h
720*1440dpi 8 pass 12m²/h
Advantages:
Description:
1．Double Epson DX7 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2．Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3．X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10. Low cost and no need any transfer paper.
Applications:
Inside:Home Decoration,Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show and so on.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
Printed Samples:
| Flag | Beach Banner | Tablecloth |
 |
|
|
Exhibition Show:
