Product Details:
|
| Product Name: | Flag Printing Machine | Application: | Indoor Decoration & Outdoor Adertising |
|---|---|---|---|
| Max Resolution: | 1440dpi | Color Mode: | Double 4 Color(C-2,M-2,Y-2,K-2) |
| Voltage: | 380V | Gross Power: | 5.5KW |
| Print Head Type: | 2 PCS Epson DX7 Print Head | Plate Type: | Roll To Roll Or Directly Out |
| Rip Software: | Maintop 5.3 Rip Software Or Neostampa 8 Optional | Compatible OS: | Win XP & Win 7 |
| Ink: | Sublimation,Reactive And Pigment Ink | Printing Interface: | Connect With Computer |
| Highlight: | textile digital printing machine,banner printing machine |
||

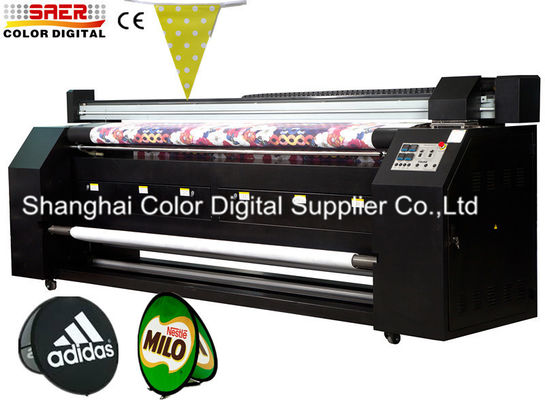

Full Colour Direct To Fabric Textile Digital Printing Machine With Epson Dx7 Head
Combine With:
One all-in-one Printing System and filter fan
1. Easy operate and fast printing
2. For polyester(flag material),also for cotton(cloth material) and silk(scarf material)
3. 12 months trouble-free warranty
Description:
| Brand | SAER |
| Model | CSR 3200 |
| Print head | Piezo technology,Epson DX7 printer head * two |
| Ink | Sublimation / Reactive Ink / Pigment Ink |
| Color Mode | Double 4 color(C-2,M-2,Y-2,K-2) |
| Nozzles | 180 nozzles*8 lines |
| Print Head Height | 1.5mm/6mm(adjustable) |
| Ink Supply Mode |
Continuous Ink Supply |
| Printing Media | Coated polyster fabric,cotton,Silk and Wool Fabric |
| Roll Owter Diameter | 3 Inch |
| Max Weight For Roll Material | 100KG |
| Interface | USB 2.0 |
| RAM | 128M |
| Printer Power | 380V |
| Power | Direct Dye Sublimation Heater 3500W Printer 2000W |
| Environment | temperature 20-32 degree |
| Weight | 1120KG |
Printing Resolution And Speed:
Resolution(DPI) Speed
720*360dpi(2 pass) 40m²/h
360*1080dpi(3 pass) 32m²/h
720*720dpi(4 pass) 22m²/h
720*1080dpi(6 pass) 18m²/h
720*1440dpi(8 pass) 12m²/h
Advantages:
Description:
1. Two Epson DX7 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10. Low cost and no need any transfer paper.
Applications:
Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show and so on.
After Sales Service:
Spare Parts Pictures:
Epson DX7 Head
