Product Details:
|
| Machine Type: | Inkjet Printer | Product Name: | Mimaki Textile Printer |
|---|---|---|---|
| Usage: | Direct Textile Printing | Max Materials Width: | 1800mm |
| Max Resolution: | 1440dpi | Print Head: | Epson DX7 * 2 |
| Plate Type: | Roll To Roll Printing Machine | Color Mode: | Dual CMYK |
| Material: | Polyester,Cotton,Silk,linen And Wool Fabric | Ink: | Sublimation,Reactive And Pigment Ink |
| Highlight: | mimaki digital printer,mimaki fabric printer |
||
Dual Four Color Digital Fabric Printer Cmyk Printing Machine With Epson Head
Quick Detail:

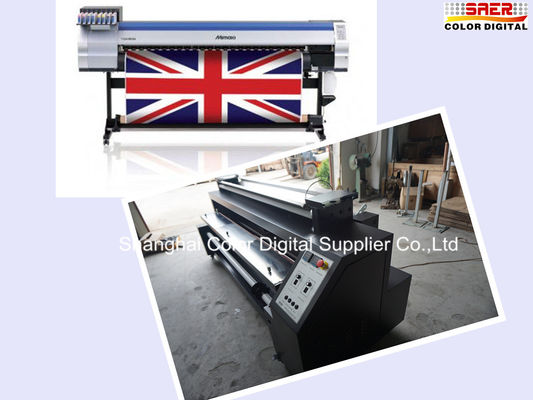

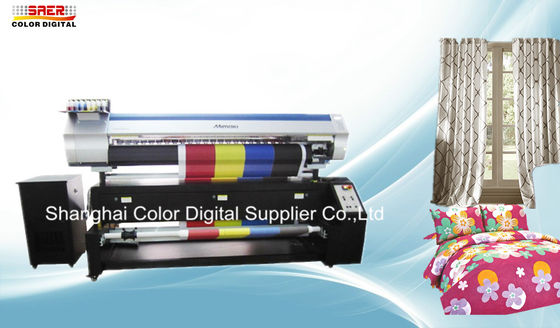

Mimaki Textile Printer Include Mimaki TS34-1800A Printer and SR1800 Heater with Filter Fan
Product Parameters:
| Brand | SAER | ||
|
Model |
MSR1800 |
||
|
Print head |
Piezo technology,Epson DX7 printer head*2 Pcs |
||
|
Ink |
Sublimation ink,Reactive Ink,Pigment Ink |
||
|
Color mode |
C,M,Y,K |
||
|
Nozzles |
1440 nozzles(180 nozzles * 8 lines) |
||
|
Print head higher |
2/3mm,3/4mm,4/5mm(Optional) |
||
|
Max materials width |
1900mm |
||
|
Max printing width |
1800mm |
||
|
Media |
Size |
210mm~1910mm |
|
|
Thickness |
1.0mm |
||
|
Roll inside diameter |
2 Inch/3 Inch
|
||
|
Roll owter diameter |
180mm |
||
| Maximum weight for roll material | 25Kg | ||
| Rip Software | Maintop or Onyx optional | ||
| Interface | USB2.0 | ||
| Printer power | AC100-120V/AC220-240V(Adaptive).50/60Hz±1Hz | ||
| Sublimation machine | AC220-240V.16A.50/60Hz±1Hz | ||
| Power consumtion | Direct dye sublimation heater 3800W | ||
| Printer 3600W | |||
| Environment | Temperature:20-35°C,Humidity:35-65% | ||
| Weight | 600KG |
Print Speed:
| Printing resolution and speed | Resolution(dpi) | speed | |
| 360x360(1pass) | 91m2/h | ||
| 540x720(4pass) | 32m2/h | ||
| 540x1080(6pass) | 22.2m2/h | ||
| 720x1440(8pass) | 13.5m2/h | ||
Features:
Printer:
1. Double Epson DX7 print head, with fast print speed, long lifespan, high precision.
2. Printing groove designed specially for fabric printing to collect waste ink and keep fabric clean.
3. Refillable ink cartridge reduces production cost.
Heater:
1. Ceramic heating tube
Heating fast and well distributed
2.Feeding and taking up inflatable roller.
3. Front and back stainless steel oscillating axles make the fabric feeding smoothly without drape.
4. Intelligent Temperature control system. (0°C----300°C adjustable)
5. Discharge slot design helps to keep the heating tube clean and easy to wipe off the oil and dust.
Filter:
1. Exhaust pipes fully discharge the smoke from the tube.
2. Carbon can be inputted easily, it makes the environment odorless and smokeless.
3. Discharge slot is easily to clean.
Advantages:
1. Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
2. The printed image color is bright and vivid with nice color gamut.
3. Rapid speed and various printer to choose
4. It is simple and leave out heat transfer process, one person can operates with high efficient and short time.
5. Low cost and no need of any kind transfer paper, liner breaking the highest costs performance
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag,roll up banner, act fast show and so on.
Produtc Service :
1. This machine has One year warranty .
2. We are Support Oversea technical service and with all life techincal support.
Printed Media:
