Product Details:
|
| Product Name: | Direct Flag Printer | Application: | Commercial Fair And Advertisement Production |
|---|---|---|---|
| Resolution: | 360 DPI To 1440 DPI | Color Mode: | Dual CMYK |
| Voltage: | 380V,50/60HZ | Gross Power: | 5.5KW |
| Print Head Type: | Epson DX7 Print Head * 2 PCS | Rip Software: | Maintop 5.3 Rip Software Or Onyx Optional |
| Compatible OS: | Win XP & Win 7 | Printing Width: | 320CM |
| Working Type: | Connect Computer | ||
| Highlight: | textile digital printing machine,banner printing machine |
||
Digital Printing Flag Machine Automatically For Advertising Production
Contents:
All-in-one printer(print and heat together) + filter fan (for pollute air out)
Usage:
Serve solutions for small production,sample making ,designer ideas and training areas .
Technical Detais
| Model | CSR 3200 |
| Print head | Piezo technology, Epson DX7 |
| Amount of head | Two PCS |
| Color Mode | Cyan,Magenta,Yellow,Black |
| Nozzles | 180 nozzles * 8 lines |
| Print Head Height | 1.5mm / 6mm(adjustable) |
| Ink Supply Mode | Continuous Ink Supply |
| Max Printing Width | 3200mm |
| Roll Owter Diameter | 3 Inch |
| Max Weight For Roll Material | 100KG |
| Interface | USB 2.0 |
| RAM | 128M |
| Printer Power | 380V |
| Power |
Direct Dye Sublimation Heater 3500W Printer 2000W |
| Environment | temperature 20-32 degree |
| Weight | 1120KG |
Printing Resolution And Speed:
Resolution(DPI) Speed
720*360dpi(2 pass) 40m²/h
360*1080dpi(3 pass) 32m²/h
720*720dpi(4 pass) 22m²/h
720*1080dpi(6 pass) 18m²/h
720*1440dpi(8 pass) 12m²/h
Advantages:
Available Ink and Material:
1) Sublimation Ink (water based): mainly used in polyester fabric.
Completed fabric can use to make all kinds of flags,banner shows and for home decoration
2) Reactive Ink:For cotton,linen and silk etc.
After printing and heating,the materials can use to make clothes and scarf.
3) Pigment Ink:For all kinds of textile fabrics.
Description:
1. Double Epson DX7 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10.Low cost and no need any transfer paper.
Applications:
Mainly use for publicity and pilot identify of commercial fair and major incidents.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
Sample Of Printed Flag:

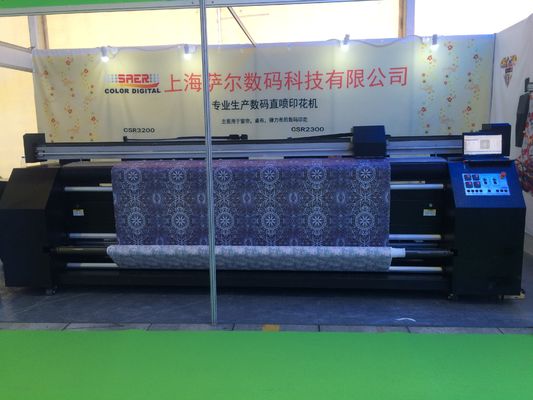

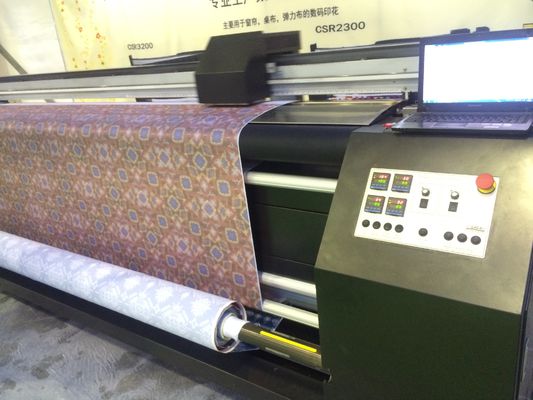

Machine Picture:
