Product Details:
|
| Product Name: | Digital Textile Printing Machine | Max Resolution: | 1440dpi |
|---|---|---|---|
| Print Head: | Epson DX7 | Amount Of Print Head: | 2 PCS |
| Ink Supply Model: | Continuous Ink Supply | Max Materials Width: | 2300mm |
| Rip Software: | Maintop 5.3 Rip Software Or Onyx Optional | Ink: | Sublimation,Reactive And Pigment Ink |
| Material: | Polyster,Cotton,Wool,Linen And Silk Etc | Color Management: | Superior ICC Profile |
| Printing Interface: | Connect With Computer | Usage: | Indoor & Outdoor |
| Highlight: | sublimation printing machine,cmyk printing machine |
||

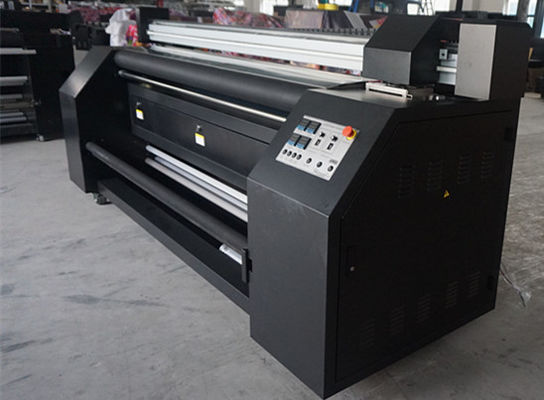

Epson DX7 Print Head Textile Sublimation Printing Machine With Pigment Ink
Product Description:
CSR 2200 Digital Textile Printing Machine,combined with 2.2m all-in-one printer and filter fan,sublimation printing type,printed material can use indoor and outdoor,can stand sunshine and no fade.
Specifications:
1. Low cost
2. High productivity
3. Dye Sublimation system
4. Directly print on textile
5. Good after sales service
Product Features
1. This Dye Sublimation Textile Printer Machine For Flag.
It Can Direct Printing Sublimation Polyester. It is also can print full cotton. If you print cotton fabirc . this machine have to use Pigment Ink.
2. It Adopt Newsest Epson DX7 Printhead With High Precison.
3. This Textile Printer Machine For Flag Use Dye Sublimation Ink . No Smell, no pollute.
4. This machine with print and heat function . save cost and place.
5. It is direct print image into Fabric .
Technical Details:
| Brand | SAER |
Model | CSR 2200 |
Printer head | Piezo technology, Epson DX7 head |
Color mode | Double four color(C,M,Y,K) |
Nozzles | (180 nozzles x 8 lines ) x2 heads |
Printer head higher | 15mm / 6mm ( Adjustable ) |
Ink supply model | Continuous ink supply |
Max materials width | 2300mm |
Max printing width | 2200mm |
Roll diameter | 3 Inch |
Maximum weight for roll material | 100kg |
Interface | USB 2.0 |
RAM | 1.2M |
Print Power | AC220-240V./AC220-240Adaptive 50/60Hz |
Power consumption | Direct dye sublimation heater 3500W |
Printer 5500w | |
Temperature | 20-32°C |
Humidity | 40-60% Non-condensing |
| Available Media | Polyster,cotton,silk,linen fabric |
Weight | Net Weight : 764kg Gross Weight : 886kg |
Printing Resolution And Speed:
| Resolution | speed |
| 720 x 360dpi (2pass) | 40m²/h |
| 360 x 1080dpi(3pass) | 32m²/h |
| 720 x 720dpi(4pass) | 22m²/h |
| 720 x 1080dpi(6pass) | 18 m²/h |
| 720 x 1440dpi(8pass) | 12 m²/h |
Available Ink and Material:
a. Sublimation Ink:
mainly used in polyester fabric.
b. Reactive Ink:
For cotton,linen and silk etc.
c. Pigment Ink:
For all kinds of textile fabrics.
Advantages:
Features:
1. Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
2. The printed image color is bright and vivid with nice color gamut after heating
3. Rapid speed and various printer to choose
4. It is simple and leave out heat transfer process, one person can operates with high efficency and short time.
5. Low cost and no need of any kind transfer paper, liner breaking the highest costs performance
After Sales Service:
1. One year warranty
2. Provide 24 hours online service.
when you first time operate the machine,our engineer will be online to guide you how to operate machine.
When your machine gets any problem, our engineer will help you to solve it through remote control.
3. If necessary,we can send you new spare part.
Application:
Home Decoration:Print on polyester fabric to make windows curtain and Table cloth,sheets and so on also can make Wall Stickers.
Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on.

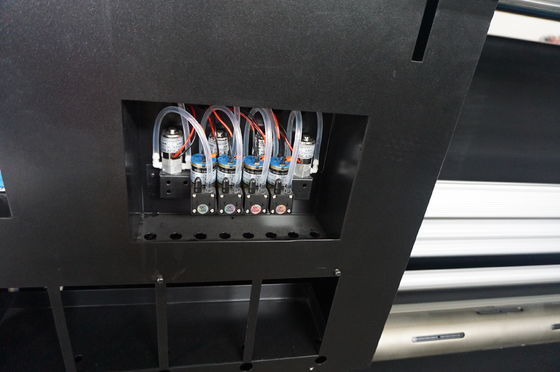

Machine Details:
Control Pannel
Samples:
| Cotton Fabric With Pigment Ink | ||
| | |
