Product Details:
|
| Product Name: | Digital Flag Printing Machine | Application: | Commercial Fair And Advertisement Production |
|---|---|---|---|
| Resolution: | 360 To 1440 DPI | Color Mode: | Dual CMYK |
| Voltage: | 380V,50 / 60HZ | Gross Power: | 5500W |
| Print Head Type: | Epson DX7 Print Head * Two | Rip Software: | Maintop 5.3 Rip Software Or Onyx Optional |
| Compatible OS: | Win XP & Win 7 | Printing Width: | 3200mm(126 Inch) |
| Working Type: | Connect With The Computer | Feeding System: | Automatic |
| Printhead Number: | 2 PCS | Color & Page: | Multicolor(Dual KCMY) |
| Highlight: | textile digital printing machine,banner printing machine |
||
3.2M Digital Flag Printing Machine CSR 3200 / Double Head DX7 Printer
Include:
All-in-one printer(print and heat together) & Filter fan (for pollute air out)
Technical Detais
| Model | CSR 3200 |
| Print head | Dual Epson DX7 |
| Color Mode | Cyan,Magenta,Yellow,Black(C,M,Y,K) |
| Nozzles | 180 nozzles * 8 lines(1440 nozzles per head) |
| Print Head Height | 1.5mm / 6mm(adjustable) |
| Ink Supply Mode | Continuous Ink Supply |
| Ink Type | Sublimation,reactive and pigment ink |
| Media Type | Polyester,Chemical Fiber,cotton,silk,linen etc |
| Max Printing Width | 3200mm(126 inch) |
| Roll Owter Diameter | 3 Inch |
| Max Weight For Roll Material | 100KG |
| Interface | USB 2.0 |
| RAM | 128M |
| Printer Power | 380V |
| Power | Direct Dye Sublimation Heater 3500W |
| Environment | temperature 20-32 degree |
| Weight | 1120KG |
Printing Resolution And Speed:
Resolution(DPI) Speed
720*360dpi(2 pass) 40m²/h
360*1080dpi(3 pass) 32m²/h
720*720dpi(4 pass) 22m²/h
720*1080dpi(6 pass) 18m²/h
720*1440dpi(8 pass) 12m²/h
Advantages:
Ink Type and Material:
1) Sublimation Ink (water based):
Mainly used in polyester fabric.
Completed fabric can use to make all kinds of flags,banner shows and for home decoration
2) Reactive Ink:
For cotton,linen and silk etc.
After printing and heating,the materials can use to make clothes and scarf.
3) Pigment Ink:
For all kinds of textile fabrics.
Description:
1. Double Epson DX7 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10.Low cost and no need any transfer paper.
Applications:
Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show and so on.
How to plce order:
1. After confirmed order details, we will make Proforma Invoice for you.
2. After received your payment, will start test machine carefully. Ensure the excellent performance.
3. After tested the machine, will pack and send out.
4. When you received the printer, there is user manual and video to guide you install,operate and maintain.
5. When any technical issues, you can contact with our technician directly. They will help you solve the problem by Skype or Teamviewer. So you can rest assured about the after service.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier

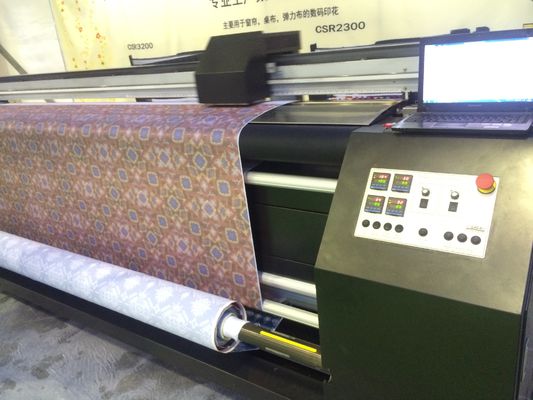

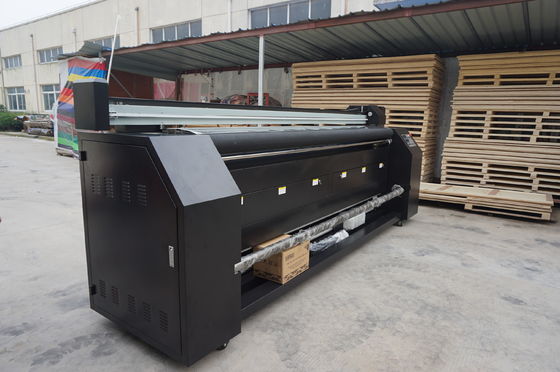

Machine Details:
Printed Samples:
| Polyester | Silk | Cotton |
| | |
