Product Details:
|
| Product Name: | 2.2m Digital Fabric / Textile Printer | Size Of Panel: | 2200mm |
|---|---|---|---|
| Max Resolution: | 1400DPI | Type: | Roll To Roll |
| Condition: | New | Print Head Amount: | Epson DX7*2 PCS |
| Color Mode: | Dual CMYK | Ink Supply Model: | Continuous Ink Supply |
| Max Materials Width: | 2300mm | Rip Software: | Maintop 5.3 Rip Software Or Onyx Optinoal |
| Ink: | Sublimation,Reactive And Pigment Ink | Material: | Polyster,Cotton,Wool And Silk Etc |
| Print Speed: | 22 Sqm / H In 4 Pass | ||
| Highlight: | cloth printing machine,inkjet printer |
||

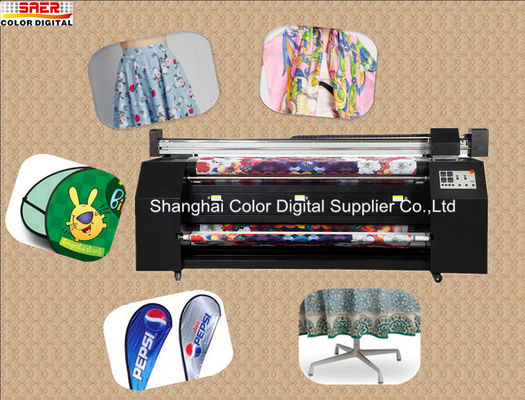

Double Epson DX7 Large Format Fabric / Textile Printing Machine
Quick Description:
2.2m All-in-one Directly Fabric / Textile Printer With Filter Fan
Specifications:
|
Model |
CSR 2200 |
| Brand | SAER |
|
Print head |
Piezo technology, Epson DX7 printer head |
|
Ink |
Sublimation ink,pigment ink and reactive ink |
|
Color model |
Double 4 Color(CMYK) |
|
Nozzles |
(180 nozzles x 8 lines ) x2 heads |
|
Printer head higher |
15mm / 6mm ( Adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
2300mm |
|
Max printing width |
2200mm |
|
Printing resolution and speed |
Resolution speed |
|
720x360dpi (2pass) 40m²/h |
|
|
360x1080dpi(3pass) 32m²/h |
|
|
720x720dpi(4pass) 22m²/h |
|
|
720x1080dpi(6pass) 18 m²/h |
|
|
720x1440dpi(8pass) 12 m²/h |
|
|
Roll diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 2.0 |
|
RAM |
1.2M |
|
Printer power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Sublimation machine |
AC220-240V. 16A. 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3500W |
|
Printer 5500w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
|
Weight |
Net Weight : 764kg Gross Weight : 886kg |
Advantages:
Product Feature
1. This Dye Sublimation Textile Printer Machine For Flag. It is Can Direct Printing Sublimation Polyester. It is also can print full cotton. If you print cotton fabirc . this machine have to use Pigment Ink.
2. It Adopt Newsest Epson DX7 Printhead With High Precison.
3. This Textile Printer Machine For Flag Use Dye Sublimation Ink . No Smell, no pollute.
4. This machine with print and heat function . save cost and place.
5. It is direct print image into Fabric .
Application:
Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show and so on.Also for clothes.
Comfortable After-Sale Service
1. We are a highly efficiency and experienced team.
2. Online support Skype, Whatsapp, Youtube, etc.
3. Life-time free technical support from SAER factory by engineers who have worked for SAER for 6-7 years.
4. Onsite Service is acceptable

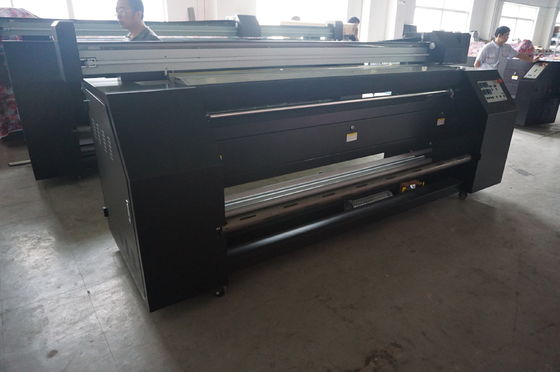

Machine Details:
