Product Details:
|
| Product Name: | Digital Cloth Printing Machine | Size Of Panel: | 2.2M |
|---|---|---|---|
| Max Resolution: | 1440dpi | Type: | Roll To Roll |
| Print Head Amount: | Epson DX7 * 2 Pieces | Color Mode: | Dual CMYK |
| Ink Supply Model: | Continuous Ink Supply | Max Printing Width: | 2300mm |
| Rip Software: | Maintop 5.3 Rip Software Or Onyx Optinoal | Ink: | Sublimation,Reactive And Pigment Ink |
| Material: | Polyester,Cotton,Wool And Silk Etc | Print Speed: | 22 Sqm / H In 4 Pass |
| Automatic Grade: | Automatic | ||
| Highlight: | large format printing machine,cloth printing machine |
||

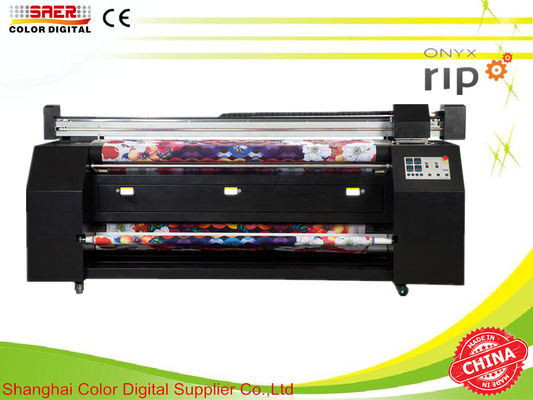

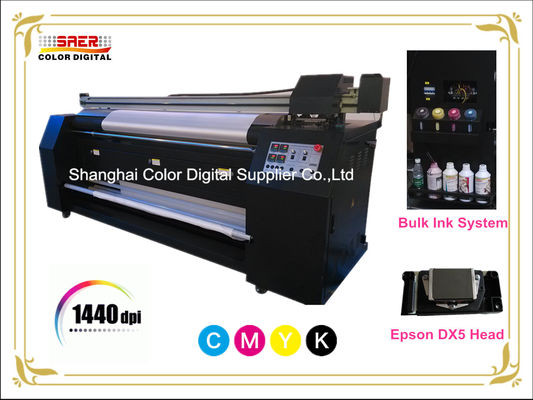

2 Epson Dx7 Cotton Printing Machine / Roll Digital Cloth Printing Machine
Quick Description:
2.2m All-in-one Directly Roll To Roll Fabric / Textile Printer With Filter Fan,Print and heat together at the same time.
Usage:
Serve solutions for small production,sample making ,designer ideas and training areas .
characteristics:
1. Low cost
2. High productivity
3. Dye Sublimation system
4. Directly print on textile
5. Good after sales service
Specifications:
Model | CSR 2200 |
| Brand | SAER |
Print head | Piezo technology, Epson DX7 printer head |
Ink | Sublimation ink,pigment ink and reactive ink |
Color model | Double 4 Color(CMYK) |
Nozzles | (180 nozzles x 8 lines ) x2 heads |
Printer head higher | 15mm / 6mm ( Adjustable ) |
Ink supply model | Continuous ink supply |
Max materials width | 2300mm |
Max printing width | 2200mm |
Roll diameter | 3 Inch |
Maximum weight for roll material | 100kg |
Interface | USB 2.0 |
RAM | 1.2M |
Printer power | AC220-240V./AC220-240Adaptive 50/60Hz |
Sublimation machine | AC220-240V. 16A. 50/60Hz |
Power consumption | Direct dye sublimation heater 3500W |
Printer 5500w | |
Temperature | 20-32°C |
Humidity | 40-60% Non-condensing |
Weight | Net Weight : 764kg Gross Weight : 886kg |
| Resolution speed |
| 720x360dpi (2pass) 40m²/h | |
| 360x1080dpi(3pass) 32m²/h | |
| 720x720dpi(4pass) 22m²/h | |
| 720x1080dpi(6pass) 18 m²/h | |
720x1440dpi(8pass) 12 m²/h |
Advantages:
Product Feature
1. This Dye Sublimation Textile Printer Machine ForCloth material. It Can Direct Printing Sublimation Polyester. It is also can print full cotton. If you print cotton fabirc . this machine have to use Pigment Ink.
2. It Adopt Newsest Epson DX7 Printhead With High Precison.
3. This Textile Printer Machine For Flag Use Dye Sublimation Ink . No Smell, no pollute.
4. This machine with print and heat function . save cost and place.
5. It is direct print image into Fabric .
Application:
Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show and so on.Also for clothes.
Cloth:Print on cotton fabric with pigment ink to make clothes.
 | |
| |
| |
(1) One year of warranty.
(2) About the after-sales service:
A. If the printer has problem, the client can take a picture or video to the technician.
B. The technician will teach the client to fix and operate the printer through the internet.
C.And we will ask the client to send back the board which is wrong to check it.
D.Believe us. The technician is full of experience, and the sales also keep in touch with the client.
