Product Details:
|
| Product Name: | Epson Head Textile Printer | Application: | Indoor Decoration & Outdoor Adertising |
|---|---|---|---|
| Max Precision: | 1440 DPI | Color Mode: | Dual CMYK |
| Voltage: | 380V,50 / 60HZ | Gross Power: | 5.5KW |
| Print Head Type: | Two Epson DX7 Print Head | Plate Type: | Roll To Roll |
| Rip Software: | Maintop 5.3 Rip Software Or Onyx Optional | Compatible OS: | Win XP & Win 7 |
| Working Type: | Connect With The Computer | ||
| Highlight: | epson color printer,epson sublimation printer |
||

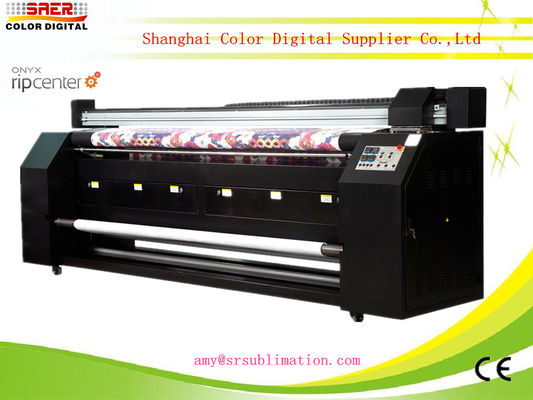

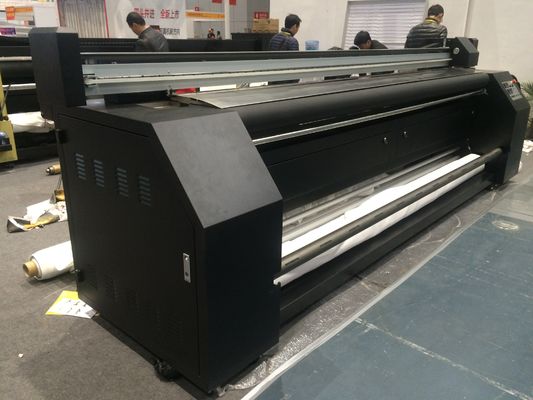

Large Format Sublimation Printer / Cloths Printer With DX7 High Precision
Descriptions:
| Model | CSR 3200 |
| Print head | Piezo technology, Epson DX7 Head |
| Amount of head | Two Pieces |
| Color Mode | Dual CMYK |
| Nozzles | 180 nozzles * 8 lines |
| Print Head Height | 1.5mm / 6mm(adjustable) |
| Ink Supply Mode | Continuous Ink Supply |
| Max Printing Width | 3200mm |
| Roll Owter Diameter | 3 Inch |
| Max Weight For Roll Material | 100KG |
| Interface | USB 2.0 |
| RAM | 128M |
| Printer Power | 380V |
| Power |
Direct Dye Sublimation Heater 3500W Printer 2000W |
| Environment | temperature 20-32 degree |
| Weight | 1120KG |
Printing Resolution And Speed:
Resolution(DPI) Speed
720*360dpi(2 pass) 40m²/h
360*1080dpi(3 pass) 32m²/h
720*720dpi(4 pass) 22m²/h
720*1080dpi(6 pass) 18m²/h
720*1440dpi(8 pass) 12m²/h
Advantages:
1. Constant temperature control:temperature adjustable
2. Low Consumption,high efficiency.
3. Print and heat together,make the picture drying fast and more gorgeous,save the labor cost effectively,reduce the print rejection rate.
Available Ink and Material:
1) Sublimation Ink (water based): mainly used in polyester fabric.
Completed fabric can use to make all kinds of flags,banner shows and for home decoration
2) Reactive Ink:For cotton,linen and silk etc.
After printing and heating,the materials can use to make clothes and scarf.
3) Pigment Ink:For all kinds of textile fabrics.
Description:
1. Double Epson DX7 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10.Low cost and no need any transfer paper.
Applications:
Our sublimation machine is CE certificated. And our sublimation printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.
How To Order:
Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
Printer Detail Pictures:
| Epson DX7 Head | Mute Guide | Control Pannel |
|
|
|
