Product Details:
|
| Product Name: | Sublimation Textile Printing Machine | Resolution: | 360-1440dpi |
|---|---|---|---|
| Print Head: | Epson DX7 * 2 Pieces | Ink Supply Model: | Continous Ink Supply |
| Max Media Width: | 2300mm | Rip Software: | Onyx |
| Ink: | Sublimation,Reactive And Pigment Ink | Material: | Polyster,Cotton,Wool,Linen And Silk Etc |
| Color Management: | Superior ICC Profile | Printing Interface: | Computer Control The Output |
| Highlight: | sublimation printing machine,cmyk printing machine |
||

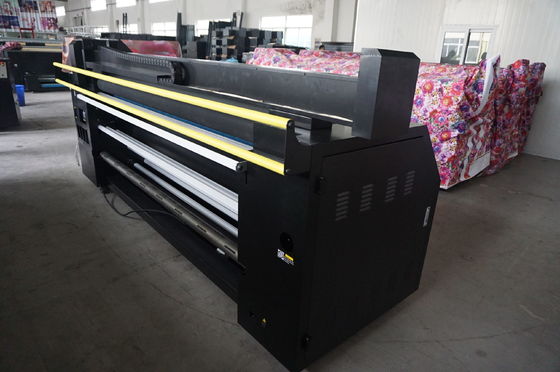

Automatic Digital Textile Printing Machine Sublimation / Reactive / Pigment Ink
Product Description:
Combined with 2.2m all-in-one printing system and filter fan,sublimation printing type,printed material can use indoor and outdoor,can stand sunshine and no fade,also can be washed.
Specifications:
1. Low cost
2. High productivity
3. Dye Sublimation system
4. Directly print on textile material
Product Features:
1. Direct Print image into fabric
2. This machine with print and heat in one machine Save price and save place.
3. It is adopt EPSON DX7 printhead with high precision.
4. This machine max print width 2.3m
Technical Details:
| Brand Name | SAER |
|
Model |
CSR 2200 |
|
Printer head |
Piezo technology, Epson DX7 head |
|
Color mode |
Double four color(C,M,Y,K) |
|
Nozzles |
(180 nozzles x 8 lines ) x2 heads |
|
Printer head higher |
15mm / 6mm ( Adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
2300mm |
|
Max printing width |
2200mm |
|
Roll diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 2.0 |
|
RAM |
1.2M |
|
Print Power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3500W |
|
Printer 5500w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
| Available Media | Polyester,cotton,silk,linen fabric |
|
Weight |
Net Weight : 764kg Gross Weight : 886kg |
| Rip Software | Onyx or Maintop |
Printing Resolution And Speed:
| Resolution | speed |
| 720 x 360dpi (2pass) | 40m²/h |
| 360 x 1080dpi(3pass) | 32m²/h |
| 720 x 720dpi(4pass) | 22m²/h |
| 720 x 1080dpi(6pass) | 18 m²/h |
| 720 x 1440dpi(8pass) |
12 m²/h |
Ink and Material it can use
a. Sublimation Ink for polyester fabric.
b. Reactive Ink for cotton,silk,linen etc
c. Pigment Ink for all kinds of textile fabrics.
Advantages:
After Sales Service:
1. One year warranty
2. Provide 24 hours online service.
when you first time operate the machine,our engineer will be online to guide you how to operate machine.
When your machine gets any problem, our engineer will help you to solve it through remote control.
3. If necessary,we can send you new spare part.
Application:
Home Decoration:Print on polyester fabric to make windows curtain and Table cloth,sheets and so on also can make Wall Stickers.
Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on.

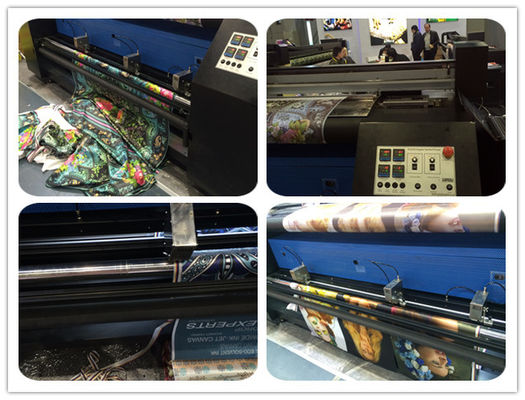

Machine Details:
Control Pannel
