Product Details:
|
| Product Name: | Direct Roll To Roll Textile Printer | Max Resolution: | 1440 DPI |
|---|---|---|---|
| Color Mode: | Dual Four Colour (CMYK) | Voltage: | 380V |
| Gross Power: | 5.5KW | Print Head Type: | Two Epson DX7 Print Head |
| Plate Type: | Digital Textile Printing Machine | Rip Software: | Maintop 5.3 Rip Software Or Onyx Optional |
| Compatible OS: | Win XP & Win 7 | Ink: | Sublimation,Reactive And Pigment Ink |
| Available Media: | Polyester,Cotton,Silk And Wool Etc | United Printer: | Mutoh,Mimaki,Roland And Any Piezoelectricity Printer |
| Printing Method: | Piezo Inkjet | ||
| Highlight: | sublimation printing machine,cmyk printing machine |
||

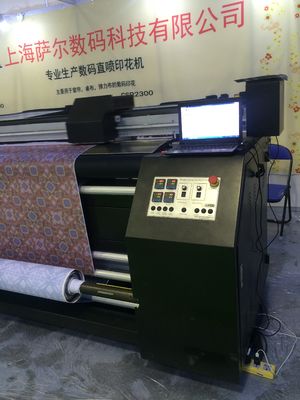

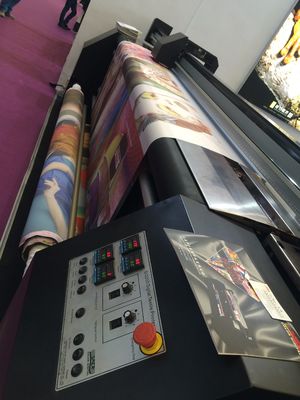

Pigment / Reactive Digital Plotter With Epson DX5/DX7 Prinhead for Fabric Printing
Technical Detais
| Model | CSR 3200 |
| Print head | Piezo technology, Epson DX7 |
| Amount of head | Two Pieces |
| Color Mode | Cyan,Magenta,Yellow,Black |
| Nozzles | 180 nozzles * 8 lines |
| Print Head Height | 1.5mm / 6mm(adjustable) |
| Ink Supply Mode | Continuous Ink Supply |
| Max Printing Width | 3200mm |
| Roll Owter Diameter | 3 Inch |
| Max Weight For Roll Material | 100KG |
| Interface | USB 2.0 |
| RAM | 128M |
| Printer Power | 380V |
| Power |
Direct Dye Sublimation Heater 3500W Printer 2000W |
| Environment | temperature 20-32 degree |
| Weight | 1120KG |
Printing Resolution And Speed:
Resolution(DPI) Speed
720*360dpi(2 pass) 40m²/h
360*1080dpi(3 pass) 32m²/h
720*720dpi(4 pass) 22m²/h
720*1080dpi(6 pass) 18m²/h
720*1440dpi(8 pass) 12m²/h
Description:
1. Double Epson DX7 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10. Low cost and no need any transfer paper.
Advantages:
Extensive Use:
Colored flag,national flag,car flag,party flag etc.
Printing Samples:
Specifications:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
