Product Details:
|
| Product Name: | Roll To Roll Bed Sheet Printer | Maximum Print Width: | 2200mm |
|---|---|---|---|
| Resolution: | 360 To 1440dpi | Working Type: | Roll To Roll |
| Print Head Amount: | 2 Pieces | Color Mode: | Dual CMYK |
| Ink Supply Model: | Continuous Ink Supply | Max Printing Width: | 2300mm |
| Rip Software: | Maintop 5.3 Rip Software Or Onyx Optinoal | Ink: | Dye Sublimation Ink / Dispersive Ink/pigment Ink |
| Material: | Blank | Automatic Grade: | Automatic |
| Print Head: | EPSON DX7 | ||
| Highlight: | epson color printer,epson sublimation printer |
||

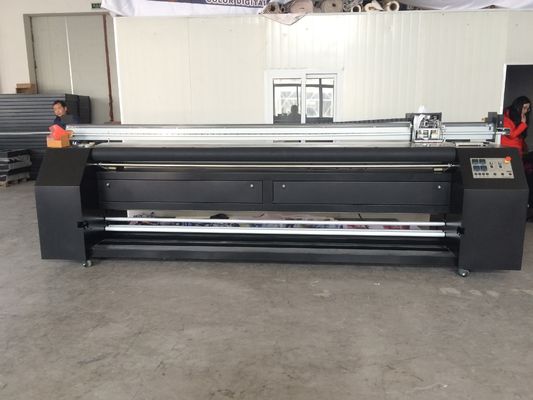

Bed Sheet Printing Machine Dye Sublimation Epson Heads Printer
Quick Details:
2.2m All-in-one Directly Roll To Roll Fabric / Textile Printer With Filter Fan,Print and heat together at the same time,directly print on fabric material and then use high temperature to dry the printed ink.
characteristics:
1. Low cost:About 2 degree electricity cost per hour with non-stop running.
2. High productivity:40m2 / hour of the speed.
3. Dye Sublimation system:print onto fabric with sublimation ink.
4. Directly print on textile:no need any transfer paper.
5. Good after sales service:1 year maintenance period.
Usage:
Serve solutions for small production,sample making ,designer ideas and training areas .
Specifications:
Save Money No need to use transfer paper
Save Time No need to perform heat transfer step
Save Space No need to keep a workplace for a heat transfer
|
Model |
CSR 2200 |
| Brand | SAER |
|
Print head |
Piezo technology, Epson DX7 print head |
|
Ink |
Dye sublimation ink / dispersive ink |
|
Color model |
Double 4 Color(CMYK) |
|
Print Head |
(180 nozzles x 8 lines ) x2 pieces of head |
|
Printer head higher |
15mm / 6mm ( Adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
2300mm |
|
Max printing width |
2200mm |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 2.0 |
|
RAM |
1.2M |
|
Printer power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Sublimation machine |
AC220-240V. 16A. 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3500W |
|
Printer 5500w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
|
Weight |
Net Weight : 764kg Gross Weight : 886kg |
Print Speed:
|
|
Resolution speed |
| 720x360dpi (2pass) 40m²/h | |
| 360x1080dpi(3pass) 32m²/h | |
| 720x720dpi(4pass) 22m²/h | |
| 720x1080dpi(6pass) 18 m²/h | |
|
720x1440dpi(8pass) 12 m²/h |
Application:
Products Printer Can Make:
 |
|
Rip Software:
1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.
(1) One year of warranty time.
(2) About the after-sales service:
A. If the printer has problem, the client can take a picture or video to the technician.
B. The technician will teach the client to fix and operate the printer through the internet.
C.We will ask the client to send back the board which is wrong to check it.
D.The technician is full of experience, and the sales also keep in touch with the client.

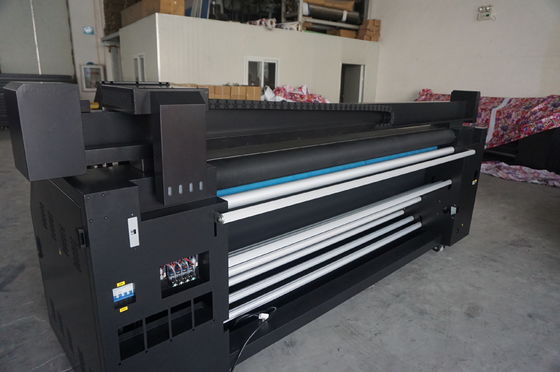

Machine Details:
