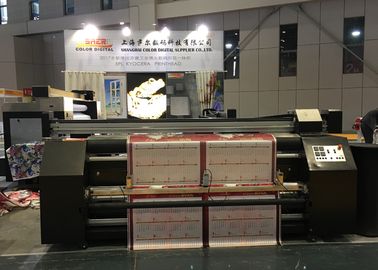

High Resolution Digital Textile Sublimation Printing Machine Continous Ink Supply

High Resolution Digital Textile Sublimation Printing Machine Continous Ink Supply
High Resolution Digital Textile Sublimation Printing Machine Continous Ink Supply High Resolution Digital Textile Sublimation Printing Machine Continous Ink Supply

Large Image :  High Resolution Digital Textile Sublimation Printing Machine Continous Ink Supply

Product Details:
Place of Origin: China
Brand Name: SAER
Certification: CE
Model Number: CSR 2200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: None fumigation wooden package (Package size: 3350*1070*1550mm)
Delivery Time: 10 working days after the payment
Payment Terms: T/T
Supply Ability: 100 Sets Per Month

High Resolution Digital Textile Sublimation Printing Machine Continous Ink Supply

Description
Product Name: Sublimation Printing Machine Maximum Resolution: 720 * 1440dpi(8 Pass)
Print Head: Epson DX5 * 2 Pieces Ink Supply Model: Continous Ink Supply
Rip Software: Onyx Ink Type: CMYK Dye Sublimation Ink,pigment Ink,reactive Ink
Media Type: Polyester,Cotton,Wool,Linen And Silk Blank Fabric Color Management: Superior ICC Profile
Printing Interface: Computer Control The Output Directly Media Handle: Automatic Feeder,automatic Take Up
Media Processing: Roll To Roll + Auto Feeding + Auto Roll Up Media Heating: Pre-heating & Post Color Fixation
Minimum Resolution: 360dpi Include: All-in-one Printing System And Filter
Color Mode: Dual KCMY Maximum Material Breadth: 2400mm
Maximum Print Breadth: 2200mm
Highlight:

cloth printing machine

,

inkjet printer

Continous Ink Supply Digital Textile Sublimation Printing Machine



Combined with 2.2m integrated Digital Textile printing system and filter fan, sublimation printing type, printed material can use indoor and outdoor, can stand sunshine and no fade, also can be washed.


Product Features:



  • Saer Sublimation Textile Printer:with high resolution,outdoor and indoor applied,designed especially for printing of textile,sublimation Flag banner cloth etc.
  • This unit is double 4 color type printer,Adopts the Epson 7th Generation of piezo technology,two heads,each head has 1440 nozzles in 8 rows,long using life.
  • Using HIWIN mute guide rail.germany IGUS silent drag chain,make your printing environment more quiter.
  • Strong Media Feed-in system,for smooth printing on heavy materials,such as textile,sublimation banner,cloth and so on.
  • X axis and Y axis are using AC serve motors

Specifications:



Save Money     No need to use transfer paper

Save Time         No need to perform heat transfer step

Save Space       No need to keep a workplace for a heat transfer machine



High Resolution Digital Textile Sublimation Printing Machine Continous Ink Supply 0


Technical Details:



Brand Name SAER

Model

CSR 2200

Print head technology

Piezo technology

Print Head Epson DX5

Color mode

Double four color(C,M,Y,K)

Nozzles

(180 nozzles x 8 lines ) x2 heads

Printer head higher

1.5mm / 6mm ( Adjustable )

Ink supply model

Continuous ink supply

Maximum materials width

2400mm

Maximum printing width

2200mm

Roll diameter

3 Inch

Maximum weight for roll material

100kg

Interface

USB 2.0

RAM

128M

Print Power

AC100-120V./AC220-240V(Adaptive)   50/60Hz

Power consumption

Direct dye sublimation heater 3500W

Printer                               100w

Temperature

20-32°C

Humidity

40-60% Non-condensing

Available Media Polyester,cotton,silk,linen,textile material
Media Handle Automatic feeder,automatic take up
File Format

TIFF,JPEG,PDFand other common image formats

Control software Chinese version and English Version

Weight

Net Weight : 764kg                  Gross Weight : 886kg

Rip Software Onyx
Working Process Windows XP / Windows 7



High Resolution Digital Textile Sublimation Printing Machine Continous Ink Supply 1

 Printing Resolution And Speed:


Resolution speed
720 x 360dpi (2pass) 40m²/h
360 x 1080dpi(3pass) 32m²/h
720 x 720dpi(4pass) 22m²/h
720 x 1080dpi(6pass) 18 m²/h
720 x 1440dpi(8pass)

12 m²/h



Ink and Material it can use

a. Sublimation Ink for Coated polyester fabric.
b. Reactive Ink for cotton,silk,linen etc
c. Pigment Ink for all kinds of textile fabrics.



Rip Software:


1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.

2.Colorful color replacement function can easily reproduce the required color.



After Sales Service:

1. One year warranty time.
2. Provide 24 hours online service.
  when you the first time operate the machine,our engineer will be online to guide you how to operate.
  When your machine gets any problem, our engineer will help you to solve it through remote control.
3. If necessary,we can send you new spare part.

Application:

Home Decoration:Print on polyester fabric to make windows curtain and Table cover,bed sheets and so on also can make Wall Stickers.
Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on.



High Resolution Digital Textile Sublimation Printing Machine Continous Ink Supply 2
