Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
Place of Origin: | Shanghai of China |
Brand Name: | SAER |
Certification: | CE Certification |
Model Number: | SR 3200 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Non fumigation wooden pakage(Package size:4350mm*1310mm*1230mm) |
Delivery Time: | whithin 7 working days after get the payment |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100 sets per month |
Plate Type: | Textile Color Fixing Machine | Automatic Grade: | Automatic |
---|---|---|---|
Condition: | New | Color & Page: | Multicolor(Dual KCMY) |
Dimensions(L*W*H): | 4350mm*1310mm*1230mm | Working Width: | 3.2m |
Working Type: | Roll To Roll | Power: | 220-240V.16A.50/60HZ |
High Light: | textile printing machines,sublimation oven |

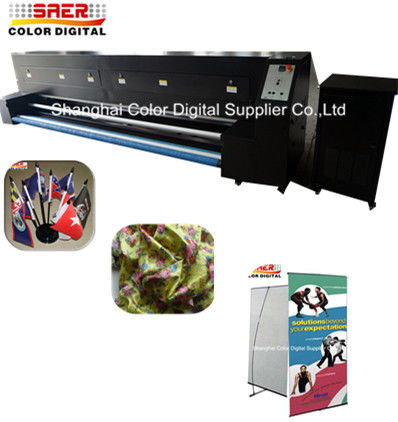

Uniform Speed Sublimation Printer Work With Piezo Printer Together
Products Features:
1. Far infrared blackbody tube radiation electro thermal heating,our tube can work at least 10000 hours.
2. Our machine have excellent heat insulation,can save more power for you.
3. Easy to load the media in and out oven during your machine working
4. Blackbody tube have more thermal efficiency
5. Intelligent PID Temperature Control
6. Feeding and Taking up Are synchronous
7. Perfect oil & water collect solution in oven..
8. Quick Tail Gas Treatment
9. Convenient to Maintain
10. Working Together with piezo printers and filter fan
Advantage:
1. Exhaust without any smell, good environment need.
2. Normal temperture for exhaust , no dangerouse for hot air out.
3. High Efficiency cold system to make sure the exhaust temperture less then 25 Degree.
4. Drawer-type device in a timely manner to facilitate the replacement of activated carbon to ensure that the emission of harmful gases.
5. Easy to Set up and Operate
6. Easy to open the caver to clean inside of oven
7. Easy to change the active carbon from the filter
8. Perfect heat insulation,can touch our machine without danger of scald
Adopting the most advanced thermal energy technology low power consumption,saves electricity and conserve energy costs.
Specifications:
Product Name |
Direct Dye Sublimation machine |
Model |
SR 3200 |
Blackbody Tube Working Model |
Far Infrared |
Mainly Use |
Appear and fix the color |
Power |
6.5kw(include filter fan) |
Maximum Width |
3300mm |
Heat Tube Dimension |
3400mm |
Working Temperature Control |
Room temperature ~250°C |
Temperature Control Method |
PID |
Tension Control |
3kg(optional counterweight to control tension) |
Maximum Speed |
0~2800mm/min |
Filter Fan Speed |
0~300m³/h |
Filter Fan Power |
400W |
Working Voltage |
220v 50hz |
Machine size |
4350mm*1310mm*1230mm(not include filter |
Net Weight |
625kg(not include filter) |
Gross Weight |
1025kg(Include filter and package) |
Operating mode |
Instrument control, manual, automatic opera |
Application:
Working together with piezo printers like Mutoh,Mimaki and Roland,to print and heat printed fabric,the completed fabric has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.

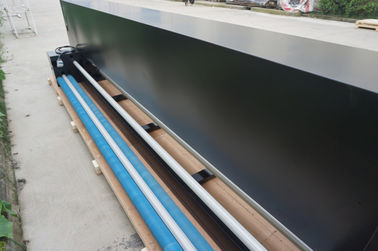

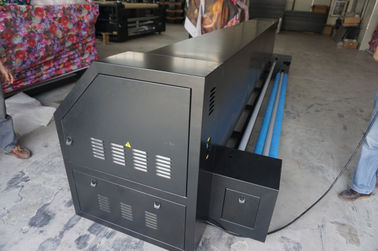

Machine Details:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
