Product Details:
|
| Machine Type: | Color Fixation Unit | Color & Page: | Multicolor |
|---|---|---|---|
| Dimensions(L*W*H): | 4350mm*1310mm*1230mm | Working Type: | Roll To Roll Or Cloth Inserted |
| Power: | 6.5kw | Usage: | Heat Wet Ink On Fabric,fix Color |
| Heaters: | Heating Box | United With: | Any Piezo Printers |
| Working Size: | 3.2m | Automatic Grade: | Automatic |
| Highlight: | sublimation oven,printing dryer,textile printing machines |
||

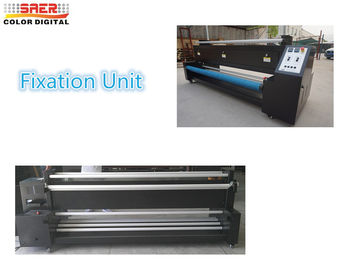

Large Format Color Fixation Unit Automatic Feed And Take Up System
Introduction
One Sublimation Textile Heater,high temperature to heat the wet ink and fix the color of fabric after printer printed.
The other is Filter Fan to collect wasted gas,protect the environment.
This machine mainly aimed at the post processing program for printing cloth,dry the wet ink,then appear the real painting you want.
Parameters:
| Maximum media Width | Heat Tube Dimension | Working Temperature Control | Maximum Speed | Working Voltage | Machine size | Net Weight |
| 3300mm | 3400mm | 0~250°C | 100m/hour | 220v 50hz | 4470mm*1300mm*1340mm | 570kg |
Products Features:
Rapidly heating,good leakproofness ensure the temperature constant
Filter and sublimation smoke effenciently,keep the environment clean
Compitable with many brands of sublimation ink,easily control the heating speed
Description:
|
Product Name |
Color Fixation Unit |
|
Model |
SR 3200 |
|
Blackbody Tube Working Model |
Far Infrared |
|
Mainly Use |
Appear and fix the color |
|
Power |
6.5kw(include filter fan) |
|
Temperature Control Method |
PID |
|
Tension Control |
3kg(optional counterweight to control tension) |
|
Filter Fan Speed |
0~300m³/h |
|
Filter Fan Power |
400W |
|
Gross Weight |
950kg(Include filter and package) |
|
Operating mode |
Instrument control, manual, automatic opera |
Filter fan specification:
| Power | 360W |
| Working Voltage | 220~240V 50HZ |
| Package Size | 620X565X1100mm |
| Weight | 60 Kg |
| Input Air temperature | >200 °C |
| Out put Air temperature | <25 °C |
| Filter Medium | Active Carbon |
| Certification | CE Certificated |
Advantage:
1. Exhaust without any smell, good environment need.
2. Normal tempreture for exhaust, no dangerous for hot air out.
3. High Efficiency cold system to make sure the exhaust temperture less than 25 Degree
Specification:
a. Low cost
b. High productivity
c. Working together with any piezo printers.
d. Directly heating on textile with high temperature.
e. Good after sales service.
Application:
Our sublimation machine is CE certificated. And our sublimation printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.

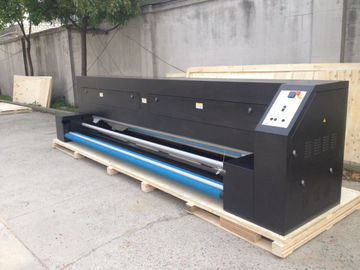

Machine Details:
Heated Samples:
Service:
1) Before place order:
We provide a suitable project according to your environment and production capacity.
2) Installation training service:
We dispatch technician to your factory for installation ,testing and training.
3) Quality Guarantee:
The whole set of machine guarantee is 1 year.
