3500W Power 1.6m Dye Sublimation Heater Post Treatment Equipment CE Certificated

Certification
China Shanghai Color Digital Supplier Co., Ltd. certification
China Shanghai Color Digital Supplier Co., Ltd. certification
Customer Reviews
Only I feel I am not only a customer for your company, we are good friends.we try to solve problems like a family .

—— Zekai Altay----Turkey

Two years passed since bought the printer,seldom has problem,satisfied with the quality.

—— William Piero----United States

I have been using product from SAER we are very happy & satisfied with your products & services.

—— Mr Niraj----Kenya

I'm Online Chat Now

3500W Power 1.6m Dye Sublimation Heater Post Treatment Equipment CE Certificated

3500W Power 1.6m Dye Sublimation Heater Post Treatment Equipment CE Certificated
3500W Power 1.6m Dye Sublimation Heater Post Treatment Equipment CE Certificated 3500W Power 1.6m Dye Sublimation Heater Post Treatment Equipment CE Certificated

Large Image :  3500W Power 1.6m Dye Sublimation Heater Post Treatment Equipment CE Certificated

Product Details:
Place of Origin: Shanghai ,China(Mainland)
Brand Name: SAER
Certification: CE Certification
Model Number: SR 1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD3200
Packaging Details: None fumiation wooden package(Package size:2560*870*1330mm)
Delivery Time: Within 5 working days after receive your payment
Payment Terms: T/T, Western Union
Supply Ability: 100 Sets Per Month

3500W Power 1.6m Dye Sublimation Heater Post Treatment Equipment CE Certificated

Description
Composed By: 1.6m Dye Sublimation Heater And Filter Fan United Printer: Mutoh,Mimaki,Roland And Any Other Piezo Printer
Working Width: 1600mm(63'') Material: Blank Or Printed Polyester / Cotton
Operation System: MS Windows XP ﹠ Windows 7 / 10 Work Speed: 20-100m / Hour
Function: Dry Fabric And Fix Color Of Printed Section Temperature: 0-300℃
Highlight:

sublimation oven

,

printing dryer

,

textile printing machines

1600mm Dye Sublimation Fabric / Textile Heater Post Treatment Equipment





Introduction:



Composed by two parts: Heater + Filter.



This machine mainly aimed at the post treatment program for heating cloth,dry the wet ink,then appear the real painting you want.



Product Description:



Product Model SR 1600

Power

3500W

Working Width

1600MM(63'')

Blackbody Tube Working Model

Far Infrared

Heat Pipe Dimension

2200MM(86.6")

Working Temperture

100 to 250 °C

Tension

0 to 1.2Kg

Working Voltage
Take Up working Method
Take Up media diameter(roll to roll)

220~240V 50HZ
Directly out or Roll to Roll.
300mm

Application Material

Cotton,Flax Fabric,Silk Fabric,Polyester Fabric,

Flag Fabric,Satin Fabric,Warp Knitting Fabric,Nonwoven Fabrics,

Weight

294kg

Certification

CE Certificated

Available Printer

Mimaki, Roland , Mutoh and any Piezo Printer



Product Advantages:



Heater:



1.Ceramic heating tube: Heating fast and well distributed.

2. Front and back stainless steel oscillating axles make the fabric feeding smoothly without drape. Feeding and taking up speed controllable.

3. Intelligent Temperature control system. (0℃----300℃ adjustable)

4. Discharge slot design helps to keep the heating tube clean and easy to wipe off the oil and dust.

5.Fabric feeding axis could bear the max. weight: 200KG



Filter:



1. Exhaust pipes fully discharge the smoke from the tube.

2. makes the environment odorless and smokeless.

3. Discharge slot is easily to clean.





Features:



  • Easy to open the caver to clean inside of the heater
  • Special clutch to control the feeding up system working or stop ,it’s easy for you loading the roll materials.
  • Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs
  • No smell ,No Pollution.

Product Advantages:



1. Many size to choose,from 1.4m to 5m

2. High Speed,can reach 100m per hour

3. water based ink,no pollution

4. Uniform Speed,make the fabric picture consonant



Extensive use:



Colored flag,national flag,car flag,party flag,table flag,meeting flag,beach flag and indoor outdoor flag.

Cotton fabric to make clothes.



3500W Power 1.6m Dye Sublimation Heater Post Treatment Equipment CE Certificated 0

After Sales Service:



1.English RIP and print software.
2.12 months warranty.
3.English manuals for easier installation and operation.
4.Engineers available to service machinery overseaside.



How To Order:

Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery

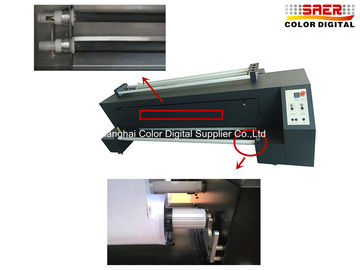

Machine Detail Pictures:



3500W Power 1.6m Dye Sublimation Heater Post Treatment Equipment CE Certificated 1
