Product Details:
|
| Machine Type: | Color Fixing Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Color & Page: | Multicolor(Dual CMYK) |
| Dimensions(L*W*H): | 4350mm*1310mm*1230mm | Working Width: | 3.2m |
| Working Type: | Roll To Roll | Model: | SR 3200 |
| Power: | 6.5kw | ||
| Highlight: | digital printing machine,digital printing machines |
||
3.2m Direct Dye Sublimation Dryer For Printed Fabric Color Fix / Appear
Introduction
Two Parts:
One Sublimation Textile Heater,high temperature to fix the color of fabric after printer printed.
The other is Activated Carbon Filter Fan to collect wasted gas.
This machine mainly aimed at the post processing program for printing cloth,dry the wet ink,then appear the real painting you want.
Products Features:
1. Far infrared blackbody tube radiation electro thermal heating,our tube can work at least 10000 hours.
2. Our machine have excellent heat insulation,can save more power for you.
3. Easy to load the media in and out oven during your machine working
4. Blackbody tube have more thermal efficiency
5. Intelligent PID Temperature Control
6. Feeding and Taking up Are synchronous
7. Perfect oil & water collect solution in oven..
8. Quick Tail Gas Treatment
9. Convenient to Maintain
Description:
|
Product Name |
Direct Dye Sublimation machine |
|
Model |
SR 3200 |
|
Blackbody Tube Working Model |
Far Infrared |
|
Mainly Use |
Appear and fix the color |
|
Power |
6.5kw(include filter fan) |
|
Maximum Width |
3300mm |
|
Heat Tube Dimension |
3400mm |
|
Working Temperature Control |
Room temperature ~250°C |
|
Temperature Control Method |
PID |
|
Tension Control |
3kg(optional counterweight to control tension) |
|
Maximum Speed |
0~2800mm/min |
|
Filter Fan Speed |
0~300m³/h |
|
Filter Fan Power |
400W |
|
Working Voltage |
220v 50hz |
|
Machine size |
4350mm*1310mm*1230mm(not include filter |
|
Net Weight |
625kg(not include filter) |
|
Gross Weight |
1025kg(Include filter and package) |
|
Operating mode |
Instrument control, manual, automatic opera |
Specification:
a. Low cost
b. High productivity
c. Working together with any piezo printers.
d. Directly heating on textile with high temperature.
e. Good after sales service.
Application:
Our sublimation machine is CE certificated. And our sublimation printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.

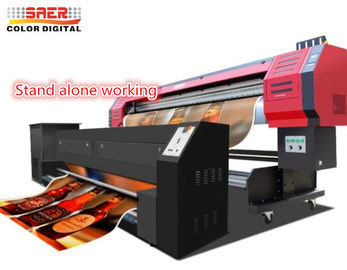

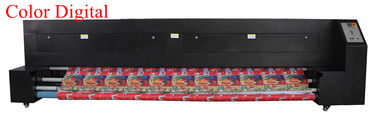

Machine Details:
Heated Samples:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
