Product Details:
|
| Voltage: | 220V-240V 50 HZ | Usage: | Fix Color |
|---|---|---|---|
| Gross Power: | 4.5KW | ||
| Highlight: | sublimation oven,printing dryer |
||
Large Format Fabric Printer Dryer Machine For Flag Fix color/ Heater Fixation Machine
Product Feature
1. Working width:2.5m
2. Main functions:heat and fix color of printed fabric
3. Directly print to the sublimation textile with sublimation ink
4. After this heating process printed pictures become very bright .
5. The printed textile can work inside and out side,and suitable to wash,no fading for the pictures.
Product Technical Data
| Power | 4.5KW |
| Working Width | 2500MM |
| Blackbody Tube Working Model | Far Infrared |
| Working Temperture | 100 to 400 °C |
| Media MAX thickness | 13mm |
| Working Voltage | 380~400V 50HZ |
| Take Up working Method | Roll to Roll. |
| Take Up media diameter(roll to roll) | 300mm |
| Certification | CE Certificated |
| Available Printer | Mimaki,Roland,Mutoh and any Piezo Printer |
Our filter fans specification:
Our filter fans specification:
|
Power |
360W |
|
Working Voltage |
220~240V 50HZ |
|
Package Size |
620X565X1100mm |
|
Weight |
60 Kg |
|
Input Air temperature |
>200 °C |
|
Out put Air temperature |
<25 °C |
|
Filter Medium |
Active Carbon |
|
Certification |
CE Certificated |

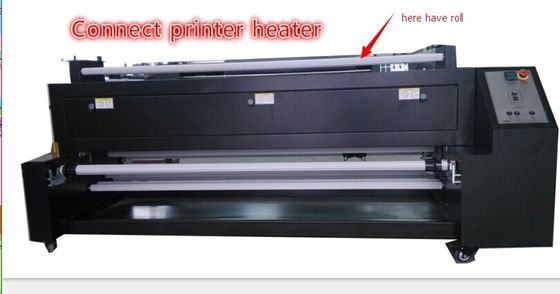

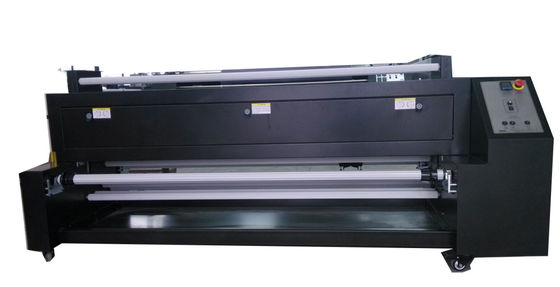

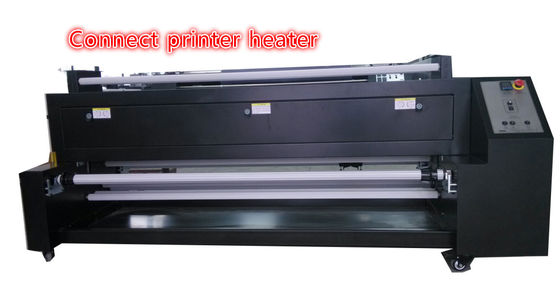

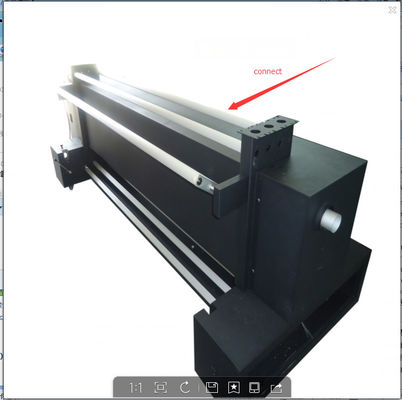

Heater Picture
Heating sample
